HEIDENHAIN MANUALplus 4110 Tool Measurement 5.15

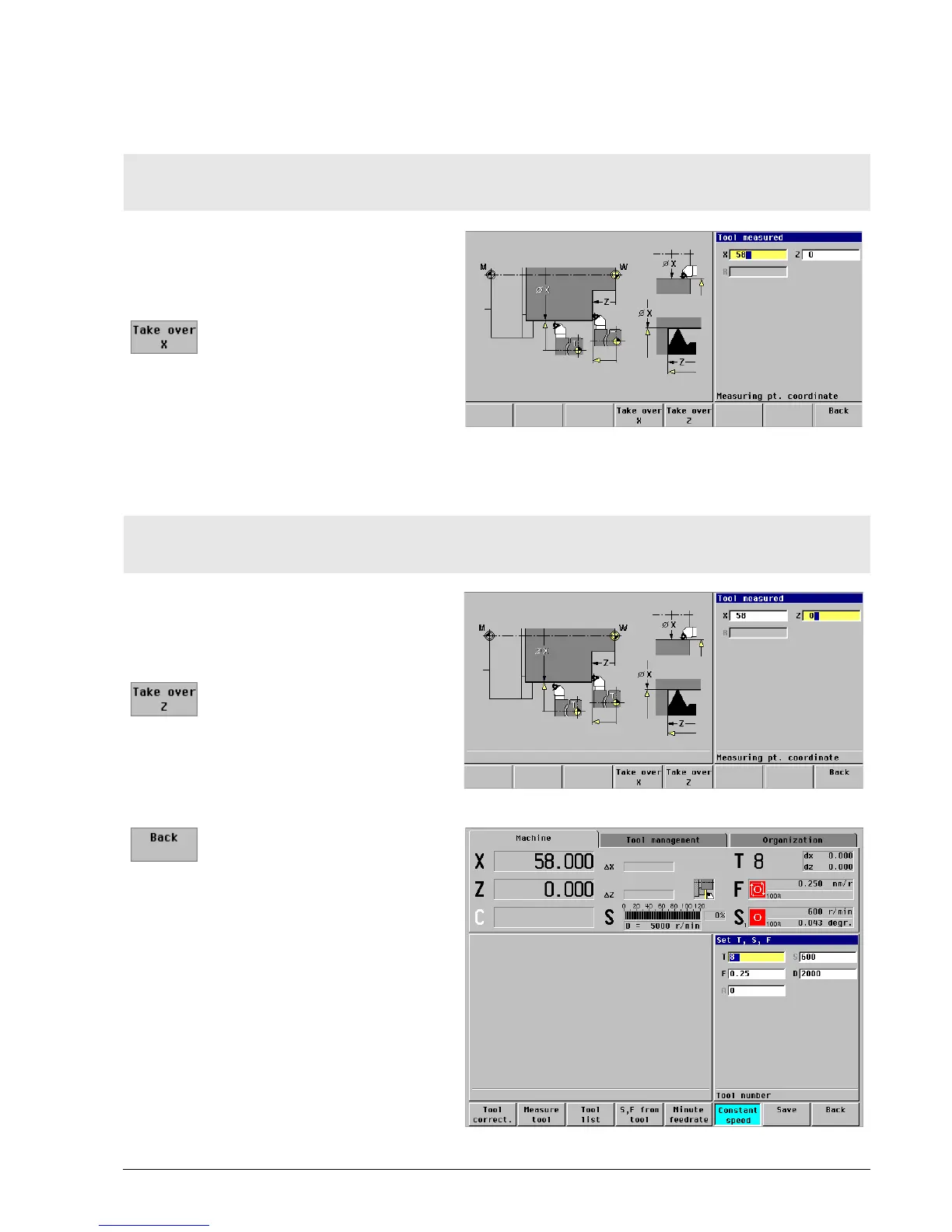

Determine the setting dimensions for T8
Touch the measuring diameter with the tool
Touch the end face with the tool
 Touch the measuring diameter with the tool
 Retract the tool in Z direction
 Enter the touched
measuring diameter in
Measuring point
coordinate X
 Press the Take over X soft
key
 Touch the end face with the tool
 Retract the tool in X direction
 Enter the value 0 (position of
workpiece datum) for the
measuring point
coordinate Z
 Press the Take over Z soft
key
 Conclude measurement of
tool T8:
Press the Back soft key
