HEIDENHAIN MANUALplus 4110 Tool Management 4.15
Creating tool T10

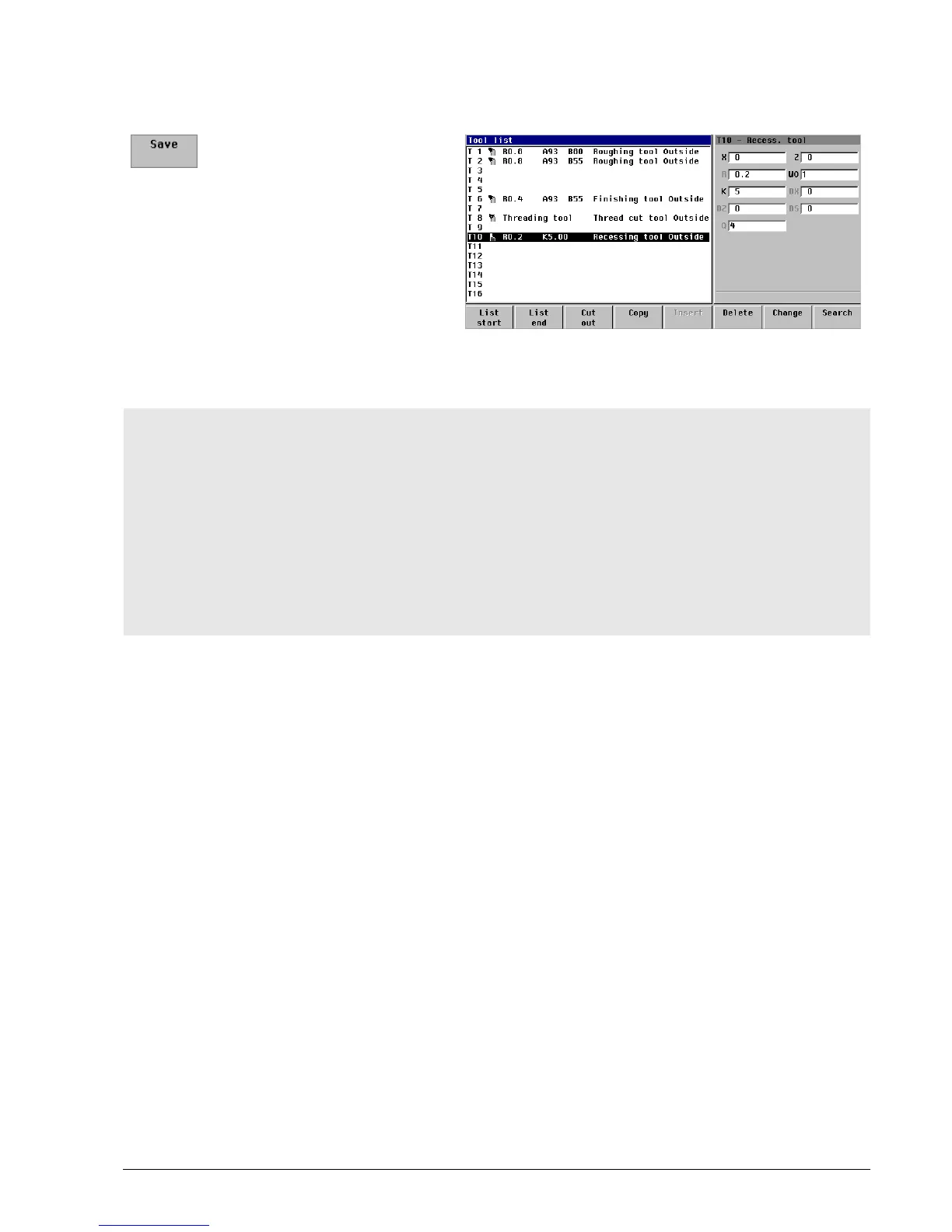

Overview of tool data T10
Save the tool data:
Press the Save soft key
Setup dimension X in X: 0 mm
Setup dimension Z in Z: 0 mm
Cutting radius R: 0.2 mm
Tool orientation WO: 1
Cutting width K: 5 mm
Wear compensation DX in X: 0 mm
Wear compensation DZ in Z: 0 mm
Special compensation DS: 0 mm
Tool text Q: 4
Machining direction MD M3=3, M4=4: 3
Cutting speed TS: 120 m/min
Feed rate TF: 0.2 mm/rev
Lifetime PT/Quantity PZ: –
