HEIDENHAIN MANUALplus 4110 Surface Machining Example 8.5
Create the “Matrix” cycle program

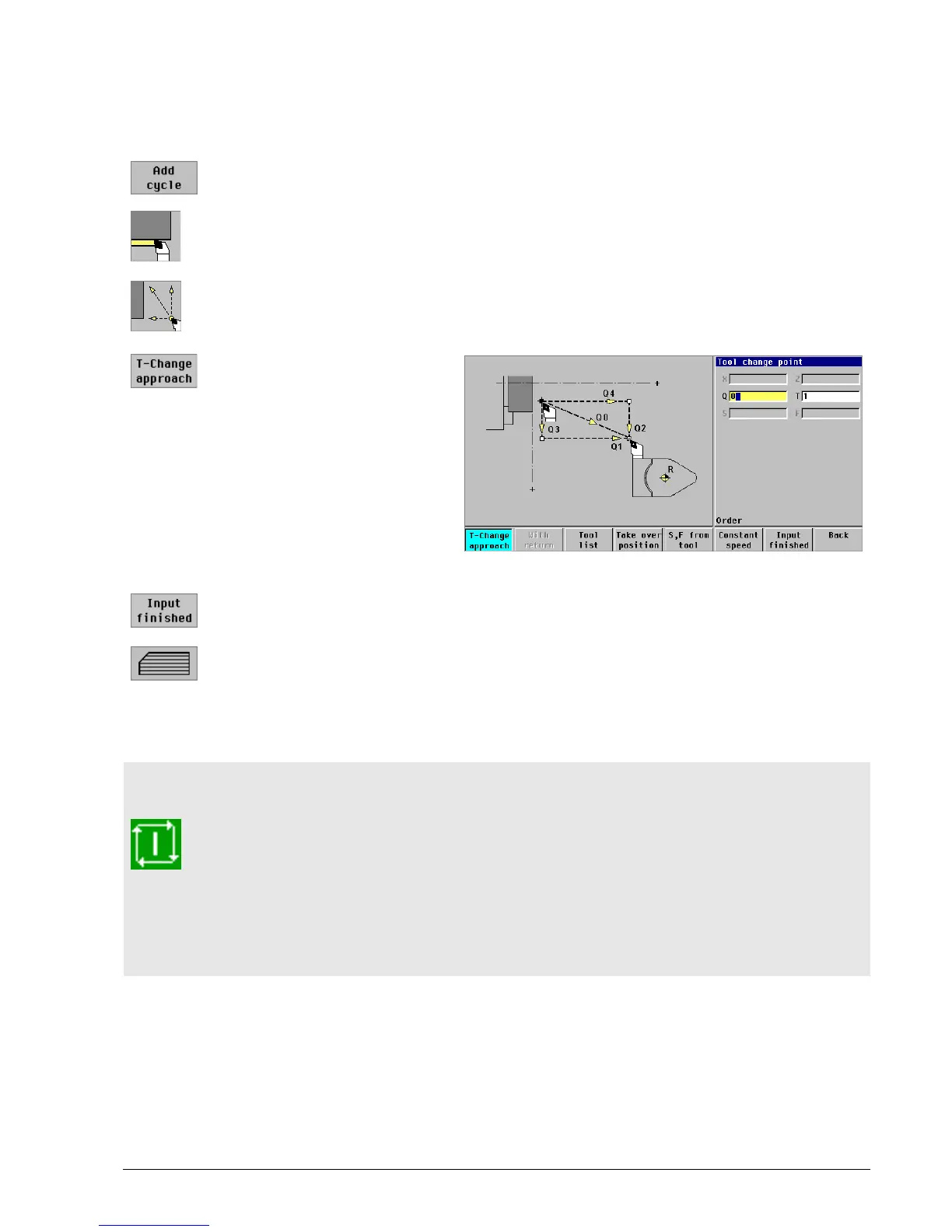

Program the “Approach tool change position” cycle
Run the cycle
 Press the Add cycle soft
key
 Press the Single cuts menu
key
 Press the Rapid traverse
positioning menu key
 Switch to “Approach tool
change position:”
Press the T-Change
approach soft key
Enter the cycle parameters:
 Sequence Q: 0
(approach the tool change position on a
diagonal path)
 Tool number T: 1
(maintain T1)
 Press the Input finished
soft key
 Test the cycle:
Press the Graphics soft key
 Set the feed rate override feed rate override to 0%
 Activate Cycle Start
 Slowly increase the feed rate override. The tool moves to the tool change
position.
 When the tool change position is reached: Insert finishing tool T6
