HEIDENHAIN MANUALplus 4110 Surface Machining Example 8.13

Example: Surface machining

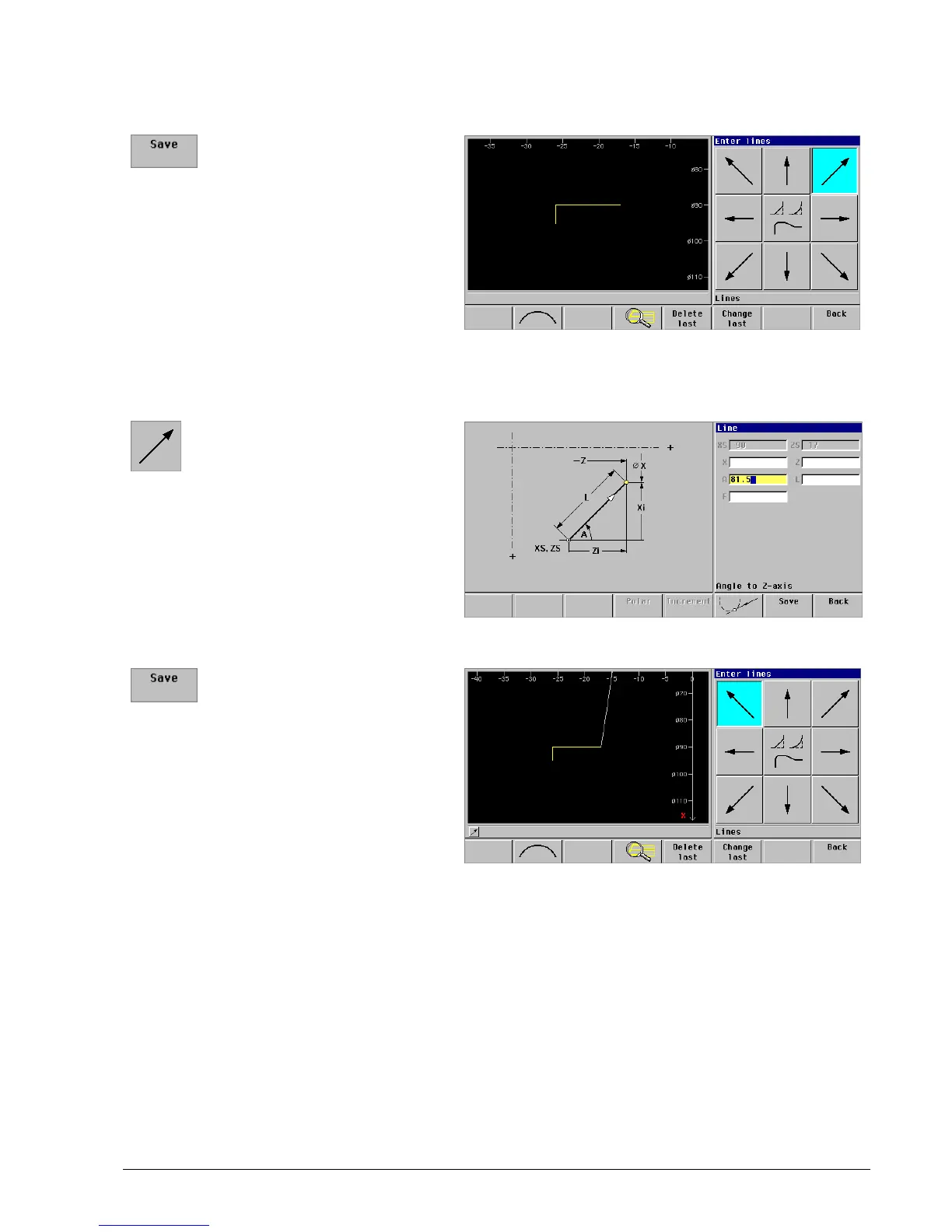

Create the “Matrix” ICP contour

Contour element 3 (oblique cut)

 Conclude entry:

Press the Save soft key

 Press the Line menu key

Describe the contour element:

 Target point X in X: No entry

 Target point Z in Z: No entry

 Angle A to Z axis: 81.5°

 Length of line L: No entry

 Special feed rate F: No entry

 Conclude entry:

Press the Save soft key

(The oblique cut is an

“unresolved element.”)
