HEIDENHAIN MANUALplus 4110 Recess Machining Example 9.18

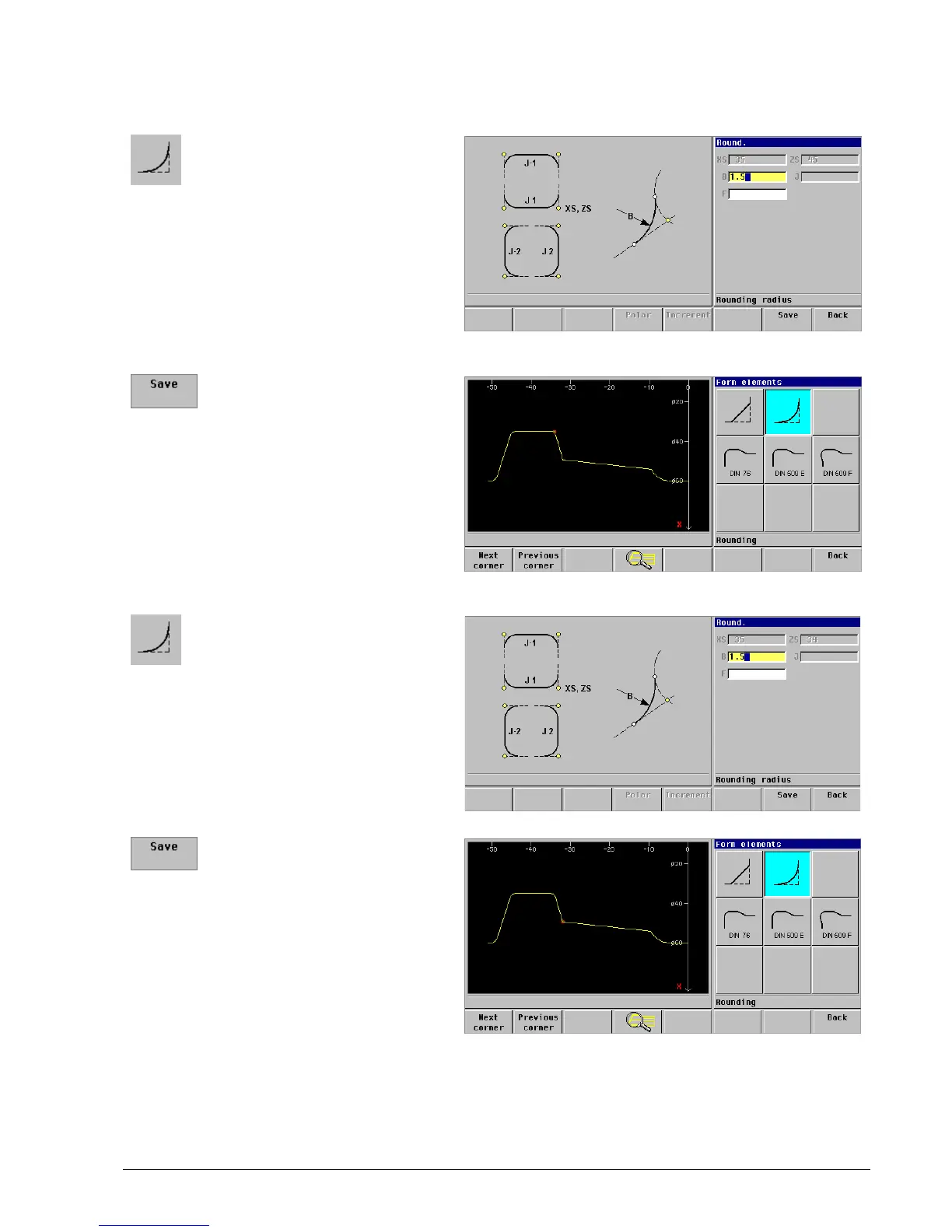

Create the ICP contour “Form roll”
 Press the Rounding menu
key
Describe the superimposed element:
 Rounding radius B: 1.5 mm
 Special feed rate F: No entry
 Insert rounding:
Press the Save soft key
(Next position for
superimposing is shown)
 Press the Rounding menu
key
Describe the superimposed element:
 Rounding radius B: 1.5 mm
 Special feed rate F: No entry
 Insert rounding:
Press the Save soft key
(Next position for
superimposing is shown)
