HEIDENHAIN MANUALplus 4110 Recess Machining Example 9.20

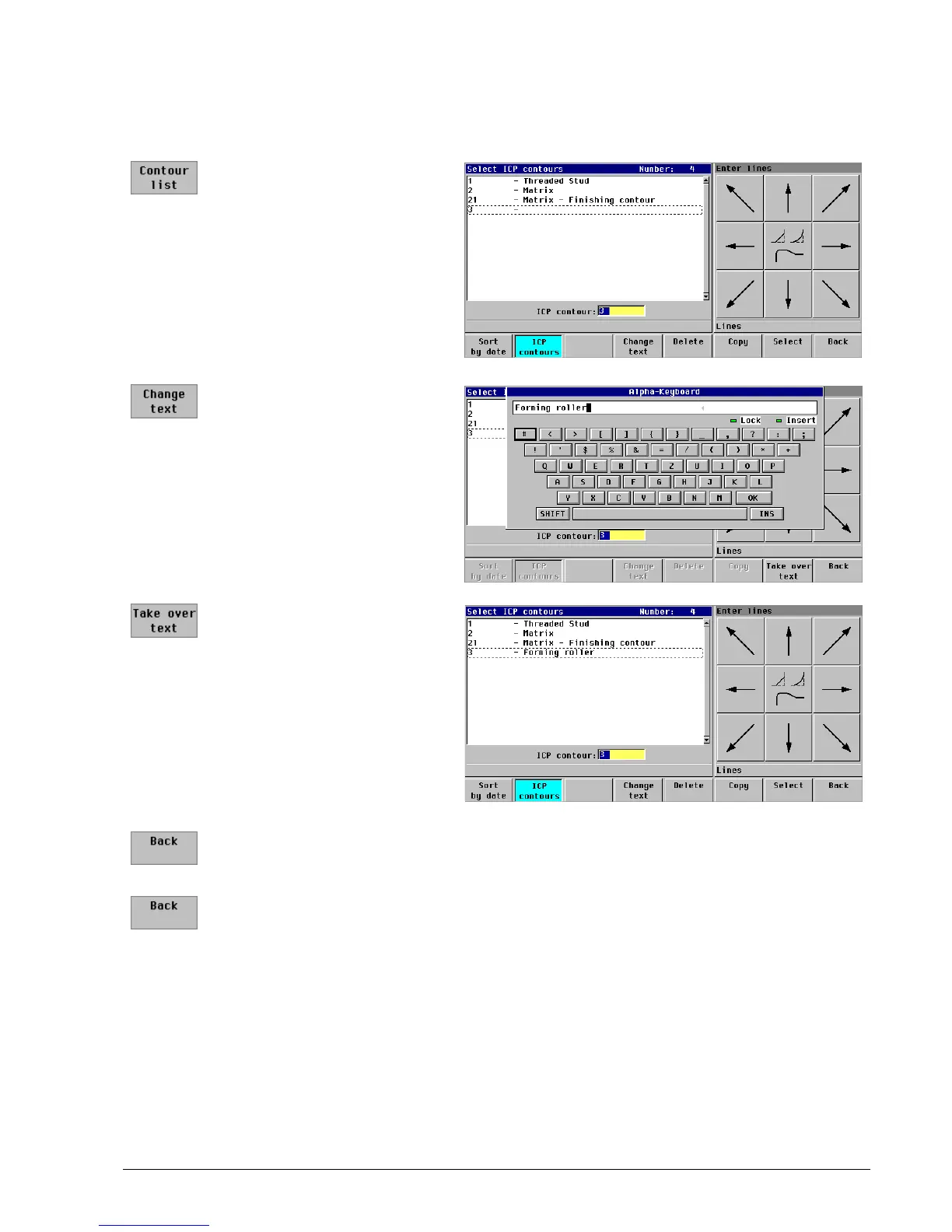

Create the ICP contour “Form roll”
Enter the contour name
 Press the Contour list soft
key
 Press the Change text soft
key
 Enter the contour name
“Form roll”
 Press the Take over text
soft key
 Exit the contour list:
Press the Back soft key
 Exit the ICP editor:
Press the Back soft key
