HEIDENHAIN MANUALplus 4110 Tool Measurement 5.17
Determine the setting dimensions for T10
Touch the measuring diameter with the tool
 Press the S, F from tool
soft key

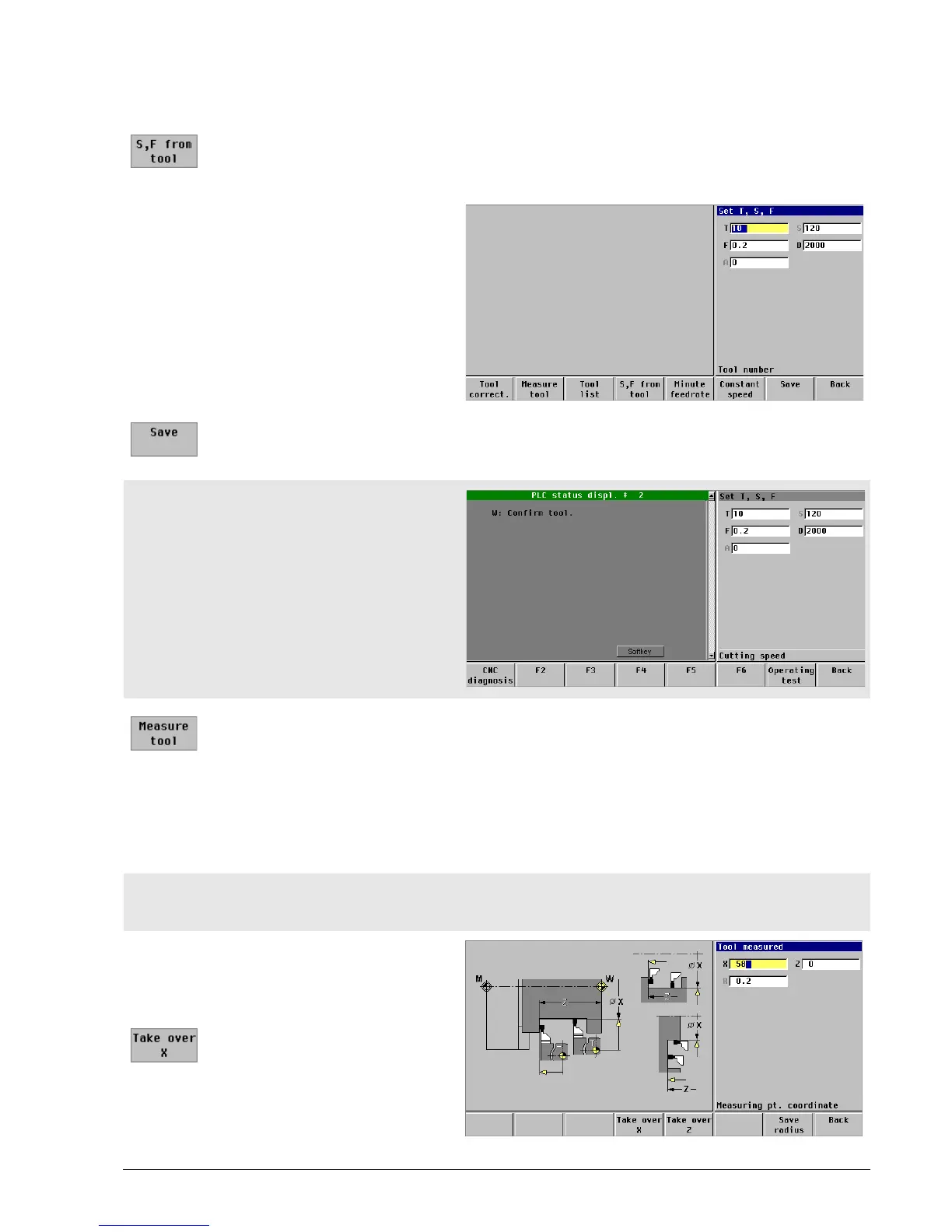

Entries and assumed machine data
 Tool number T: 10
 Cutting speed S: 120 m/min
 Feed rate per revolution F:
0.2 mm/rev
 Maximum shaft speed D: 2000 rev/min
 Stopping angle A: No entry
 Activate the tool:
Press the Save soft key
 Insert tool T10
 Confirm T10 with the tool-change
key
 Select the “Measure tool”
function:
Press the Measure tool
soft key
 Touch the measuring diameter with the tool
 Retract the tool in Z direction
 Enter the touched
measuring diameter in
Measuring point
coordinate X
 Press the Take over X soft
key
