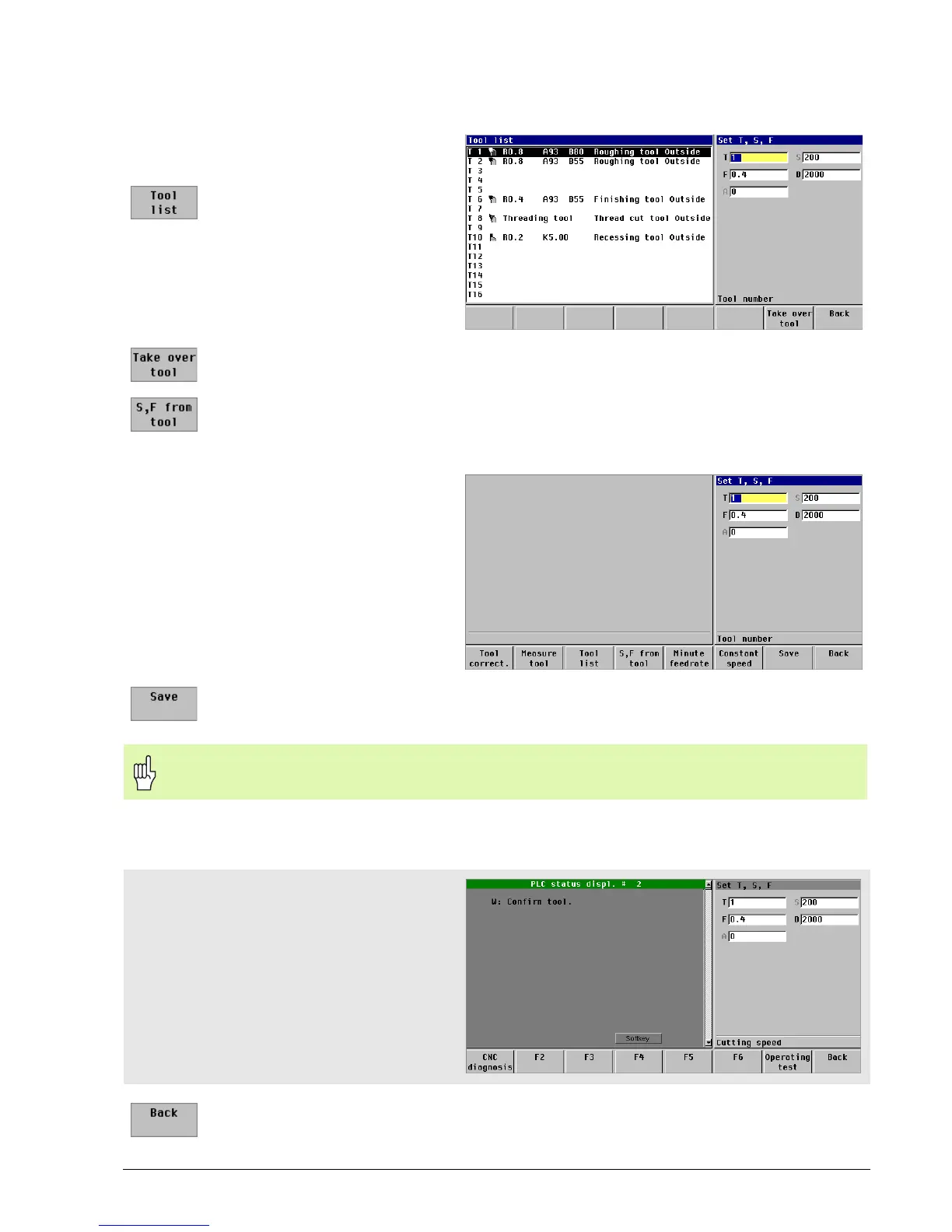

HEIDENHAIN MANUALplus 4110 Machine Setup 6.2
Entering the machine data
Confirm tool
Assume the tool, cutting speed and feed
rate from the tool file:
 Open the tool file:
Press the Tool list soft key
 Press the Take over tool
soft key
 Press the S, F from tool
soft key
Entered and assumed machine data
 Tool number T: 1
 Cutting speed S: 200 m/min
 Feed rate per revolution F:
0.4 mm/rev
 Maximum shaft speed D: 2000 rev/min
 Stopping angle A: No entry
 Activate machine data:
Press the Save soft key
The maximum speed depends on the machine and the clamped workpiece.
 Confirm T1 with the tool-change key
 Return to the main menu:
Press the Back soft key
