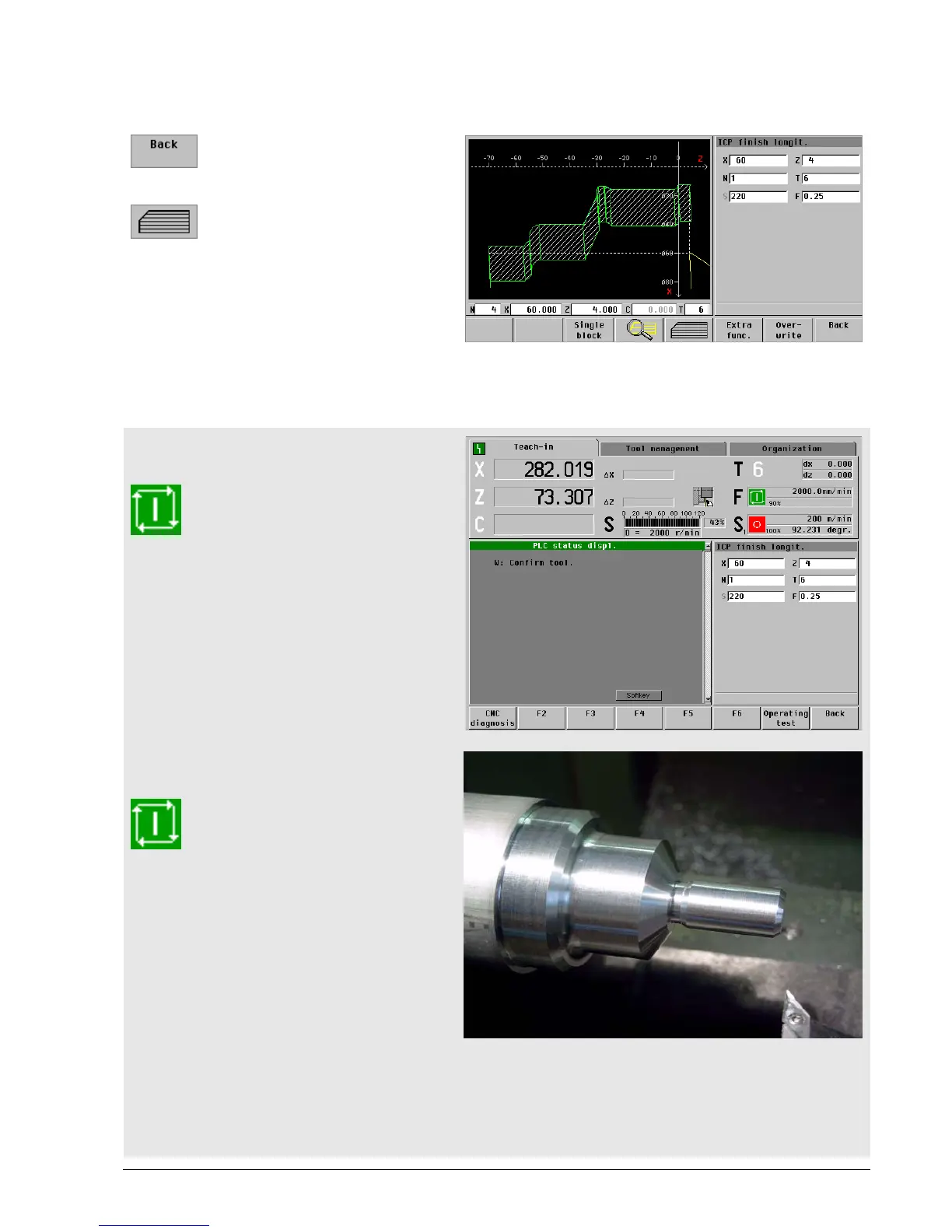

HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.23
Create the “Threaded stud” cycle program
Run the cycle
Conclude setting of the
additional functions:
Press the Back soft key
Repeat the simulation with
new settings:
Press the Graphics soft key
Set the feed rate override
feed rate override to 0%
Activate Cycle Start
(The finishing tool is not yet
confirmed.)
Confirm tool T6 with the
Tool change key
Activate Cycle Start again
Slowly increase the feed
rate override. The finishing
cycle is performed.
Measure the created diameter and correct the tool if necessary:
Retract with the handwheel
Measure the diameter
