HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.26
Create the “Threaded stud” cycle program
Run the cycle
 Press the Rapid traverse
positioning menu key
 Press the T-Change
approach soft key

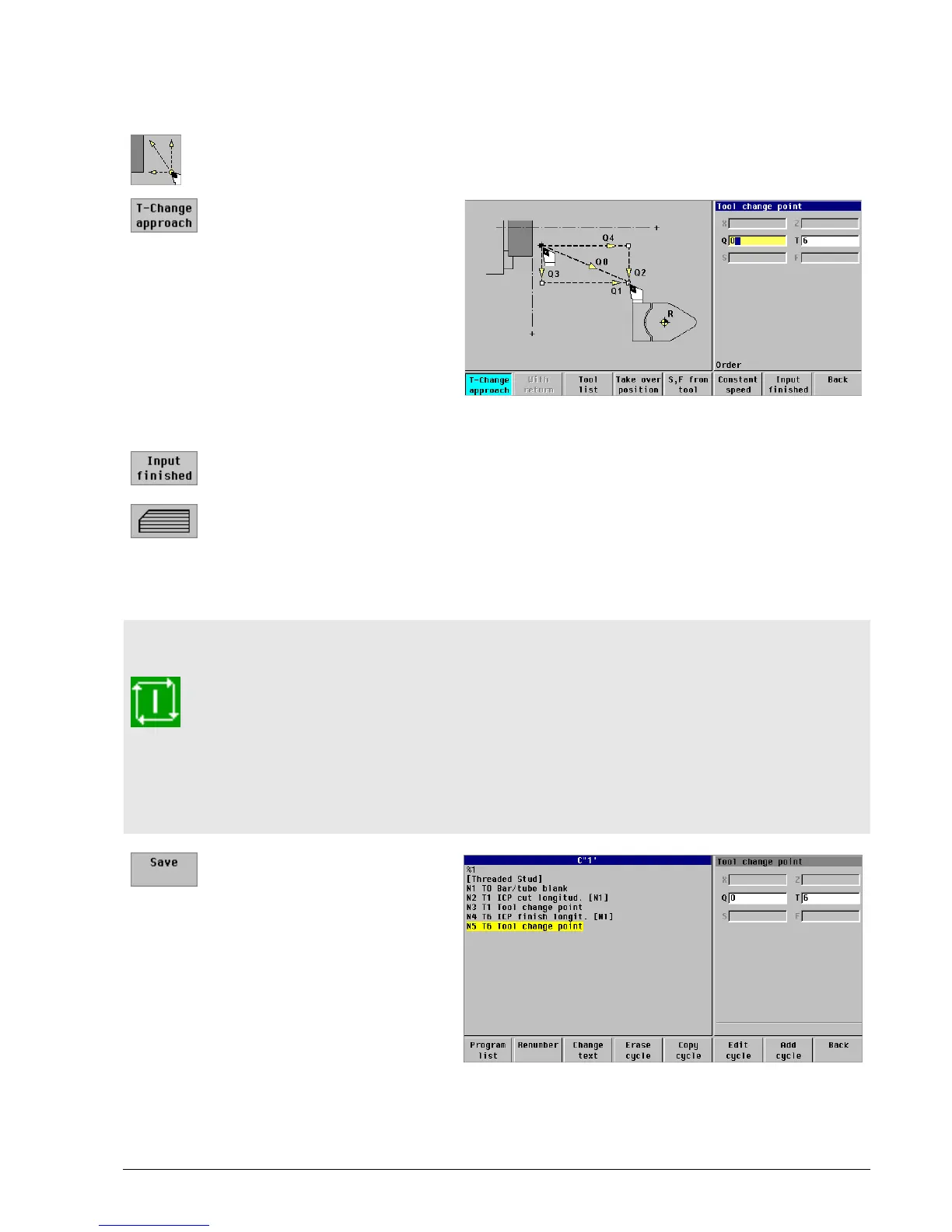

Enter the cycle parameters:
 Sequence Q: 0
(approach the tool change position on a
diagonal path)
 Tool number T: 6
(maintain T6)
 Press the Input finished
soft key
 Test the cycle:
Press the Graphics soft key
 Set the feed rate override feed rate override to 0%
 Activate Cycle Start
 Slowly increase the feed rate override. The tool moves to the tool change
position.
 Use the threading tool T8
 Save the cycle:
Press the Save soft key
