HEIDENHAIN MANUALplus 4110 Linear Machining Example 7.33

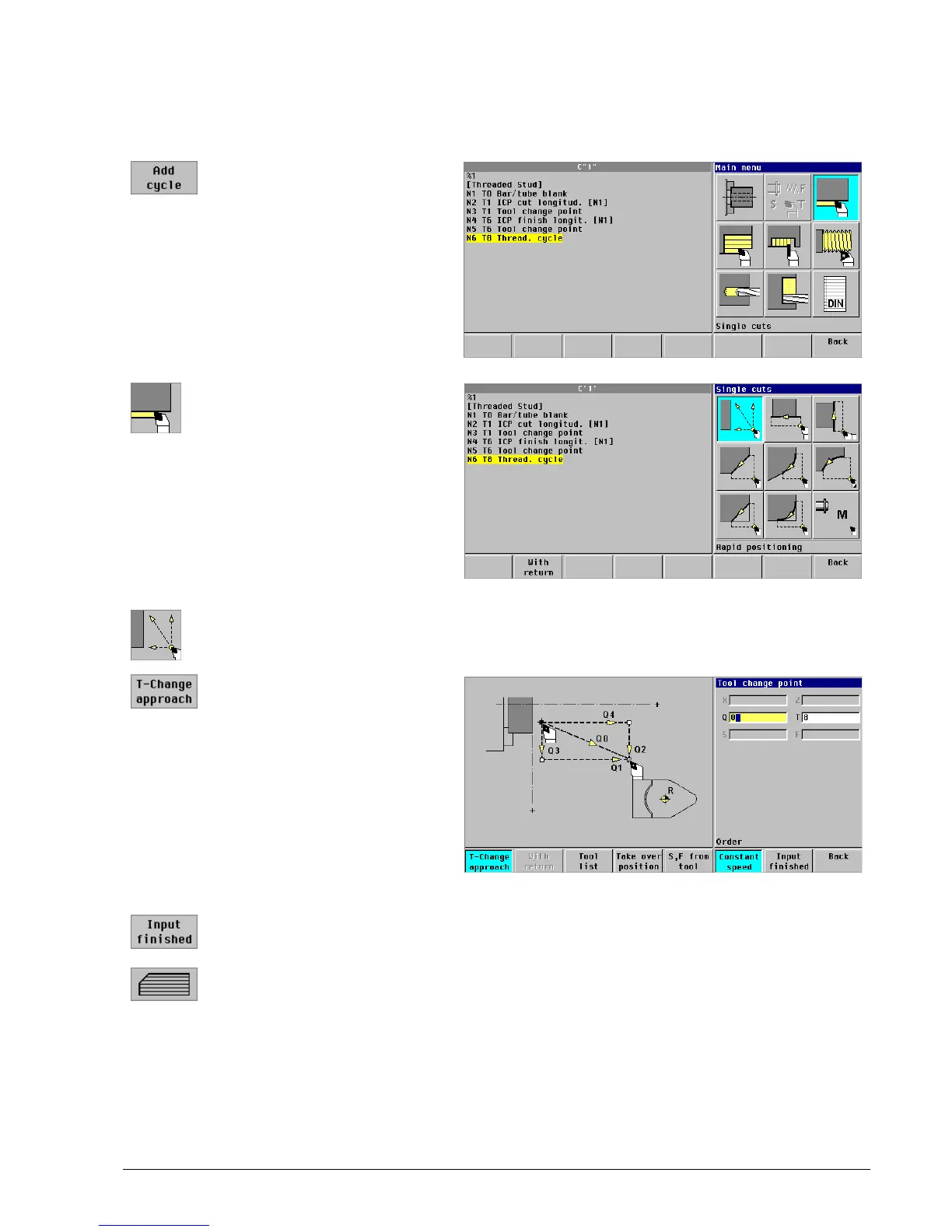

Create the “Threaded stud” cycle program
Program the “Approach tool change position” cycle
 Press the Add cycle soft
key
 Press the Single cuts menu
key
 Press the Rapid traverse
positioning menu key
 Press the T-Change
approach soft key
Enter the cycle parameters:
 Sequence Q: 0
(approach the tool change position on a
diagonal path)
 Tool number T: 8
(maintain T8)
 Press the Input finished
soft key
 Test the cycle:
Press the Graphics soft key
