HER CHEE ADLY RT-50 - Chapter 4: Cylinder Head Disassembly

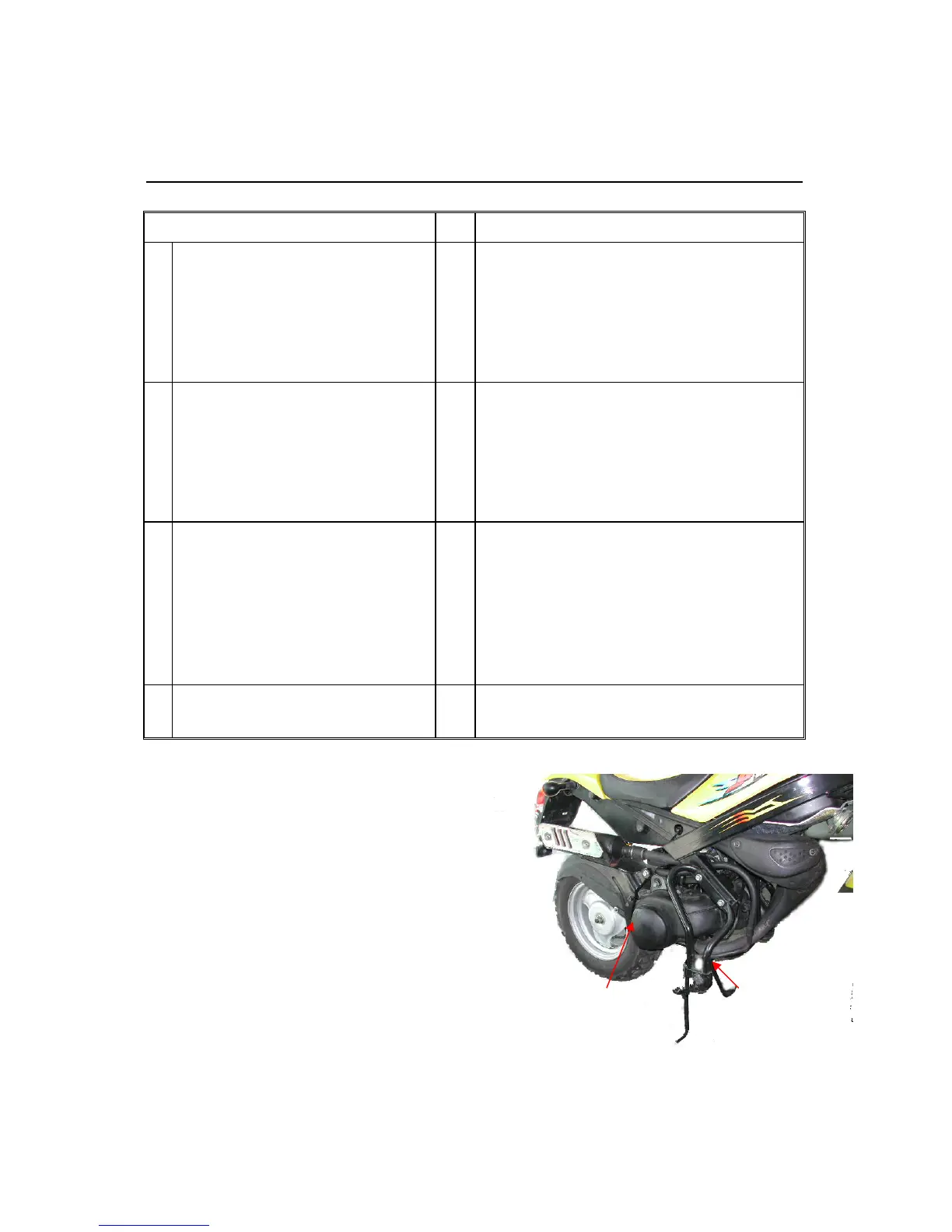

Chapter 4 Cylinder Head / Cylinder / Piston
Operation / Parts Name Q’ty Remarks
1
2
3
Disassembly
Cylinder head
Nut of cylinder head
Cylinder head
Cylinder head gasket
4
1
1
WARNNING:
–Cross loosing the nuts 2-3 times.
4
5
Cylinder
Cylinder
Cylinder gasket
1
1
WARNNING:
–Don’t knock cooling fin.
–During cleaning the gasket beware not
to damage joint face of cylinder and
crank case.
6
7
8
9
10
Piston
Piston ring clip
Piston pin
Piston
Piston ring
needle bearing of small side
2
1
1
2
1
Assembly
10→1
–Operation with sequence in reverse
procedure.
Removal
Disassembly of right side generator
cover.
Remove air filter and spark plug cap
Disassembly of muffler.
Separate the oil tube on air shroud.
Pull out air-shroud of the cylinder.
Generator Cover Muffler
