Chapter 6 CRANK CASE & CRANK SHAFT

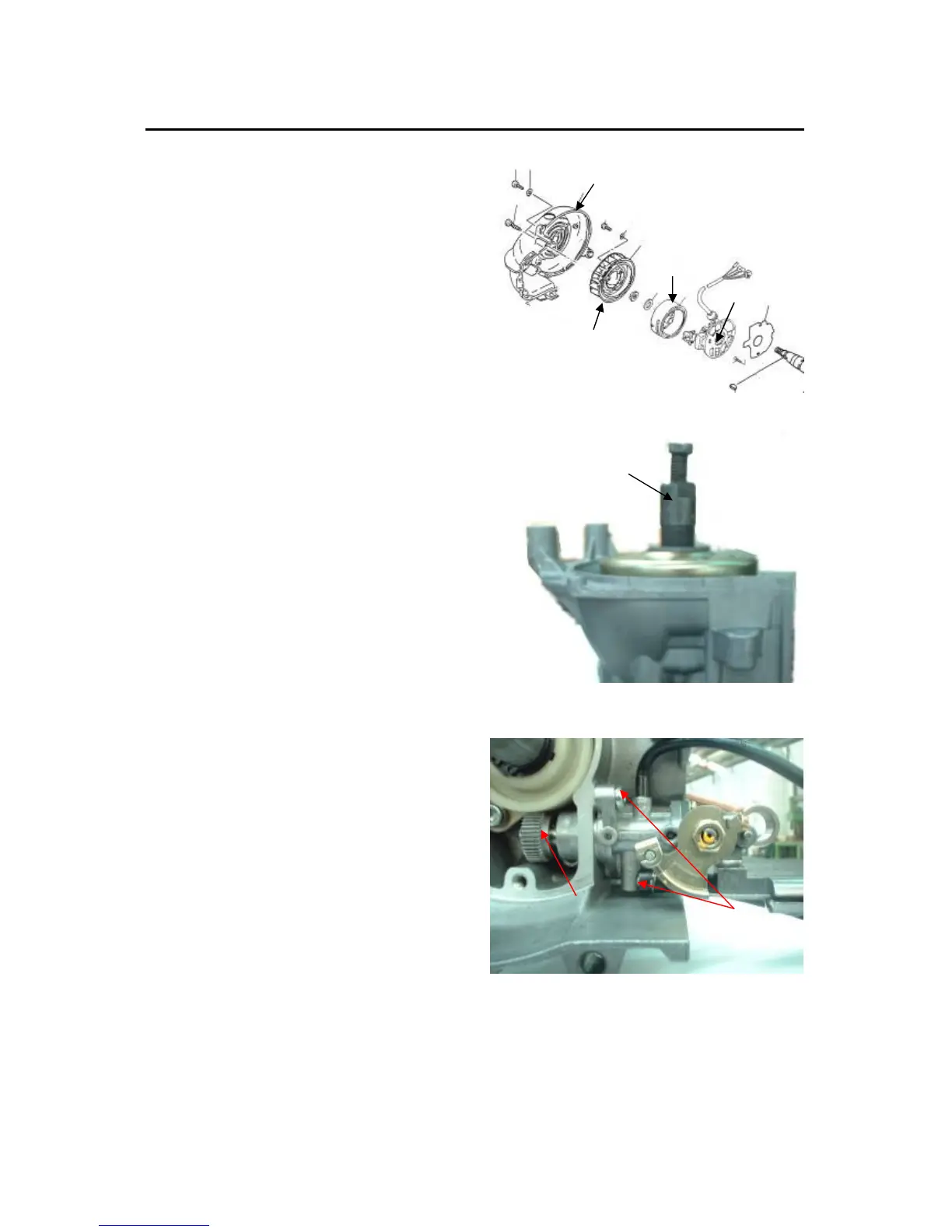

Disassembly of ACG
Remove fan cover air shroud.
Remove cooling fan
Loosen the flywheel fix nut
Use special puller to remove the
flywheel.
Disassembly oil pump
Remove oil drive gear cover gasket.
Loosen two pump fixing bolts
Pull out the oil pump.
Installation
Install the in the reverse order of
removal.
Notice:
Grease oil pump and drive gears before
covering the gasket.
Cooling fan
Fan cover
Flywheel
ACG coil
& bracket
Fixing bolts
Grease the gear
Flywheel
puller
