Chapter 9 Front Wheel / Front Suspension / Front Brake

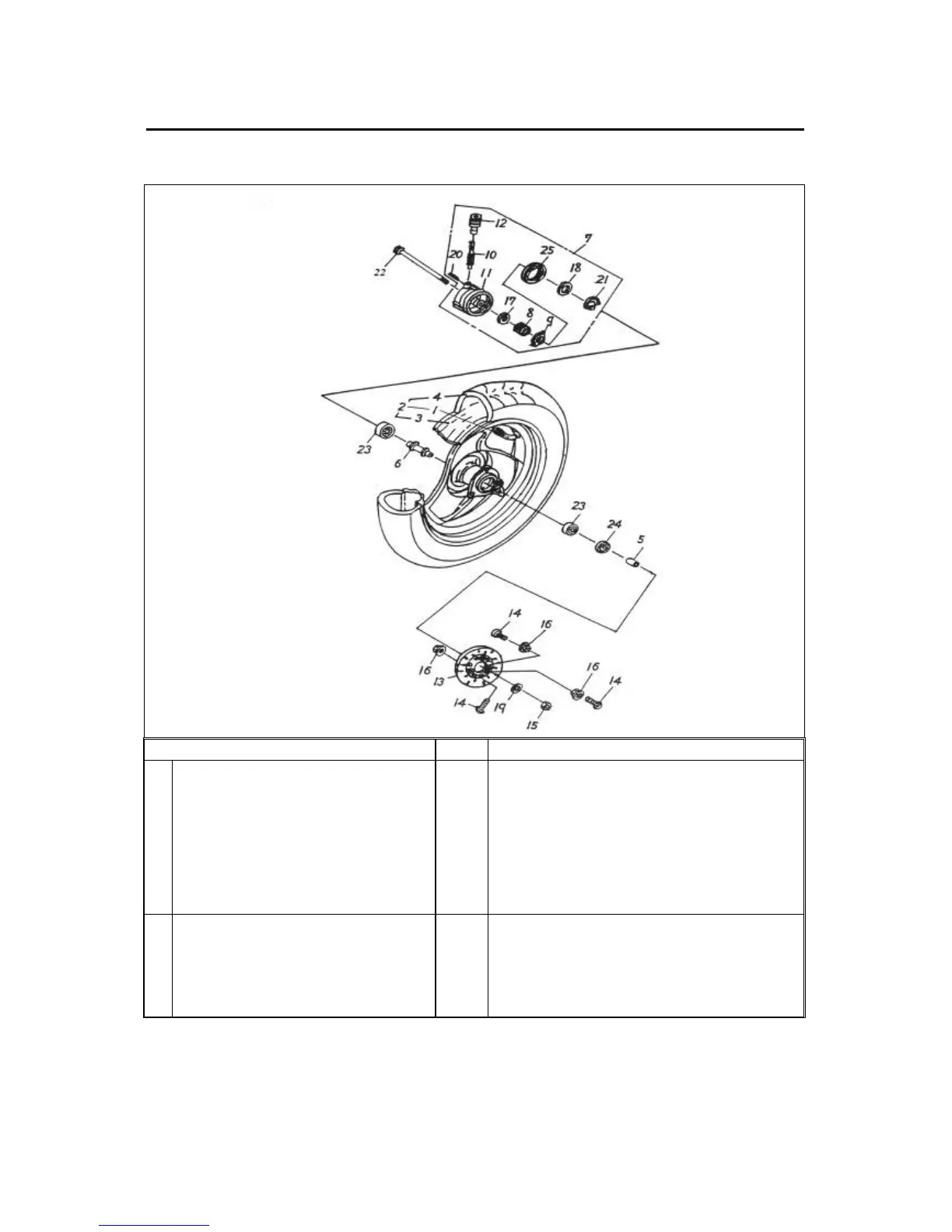

Disassembly / Assembly of Front Wheel
Operation / Parts name Q’ty Remarks
1
2
3
4
5
6
Disassembly of Front Wheel
Nut nylon
Speedometer gear
Hex washer face bolt
Front collar
Front fender
Front brake disc
1
1
1
1
1
1
Assembly
6→1
Operation with sequence in reverse
procedure.
WARNNING:
When assembling of right fork, shall be
aimed at convex of speedometer gear.
