HER CHEE ADLY RT-50 - Chapter 11: Charging System Checks

Chapter 11 Electrical Device
Check Charging Status
WARNNING:
Voltage will have big change by following
the charging status of battery.
Therefore the check must process after
battery completely charging and the
voltage over 12.8 V.
There will produce big current in battery
when using electrical starter.

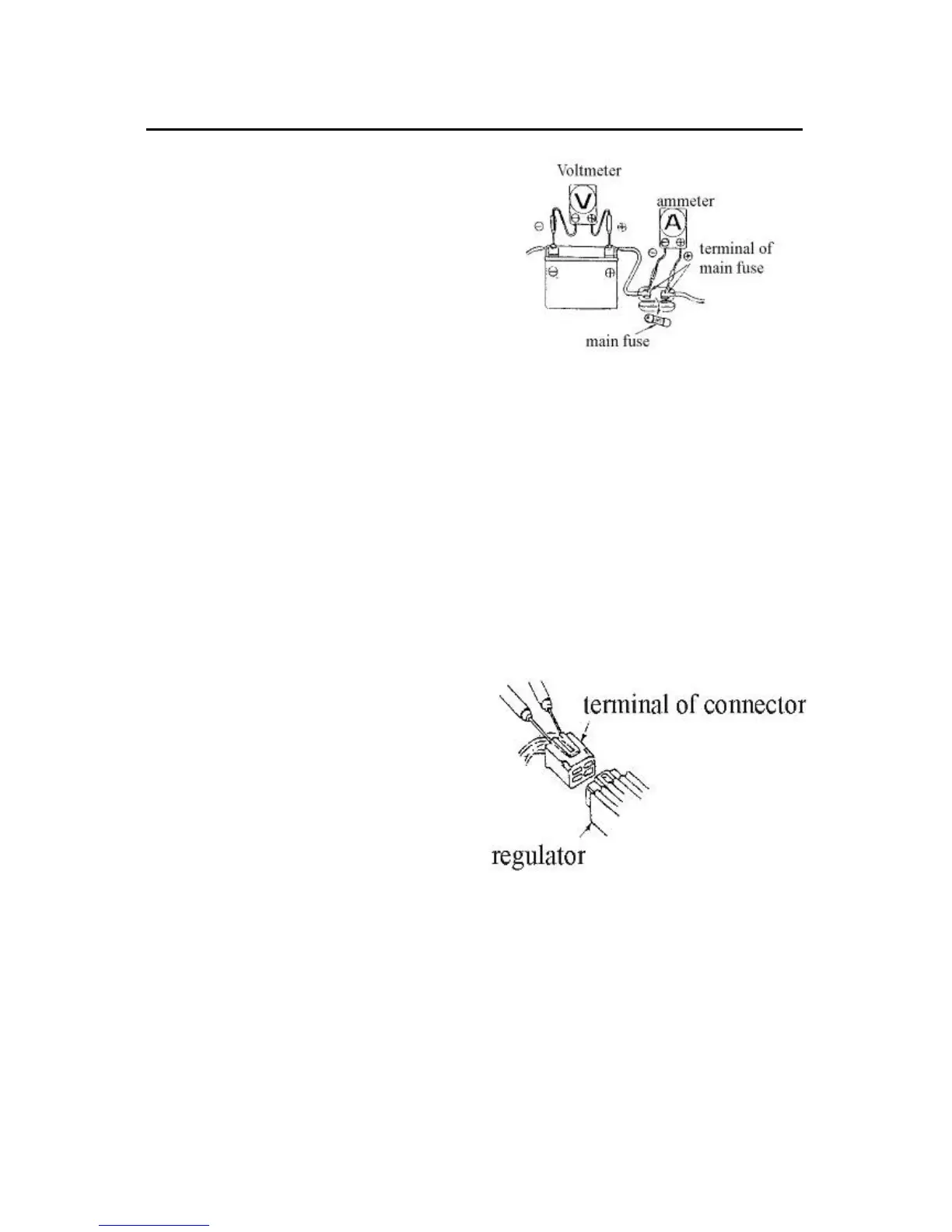

Assembly voltmeter to terminal of
main fuse then start the engine.
Turn on the light and increasing engine
RPM then check charging voltage &
current.
Charging current : 1~2 Amp/5000rpm
Voltage of charging control:
14~15V/5000rpm
Check Voltage of Front Lighting
Control
Disassemble front cover of handle bar.
WARNNING:
Check head light which wires connecting.
Start engine, turn “ON“ light switch,
change to high beam.
Check voltage between green (+) &
black (-) guide wires.
Check Voltage Regulator
Disconnect the voltage regulator.
Check return of wiring edge connection
head.
WARNNING: Check in range of AC.
Check voltage regulator when voltage
is not in the control range.
Control voltage: 12~14V/5000rpm
