Chapter 7 Final Transmission Mechanism

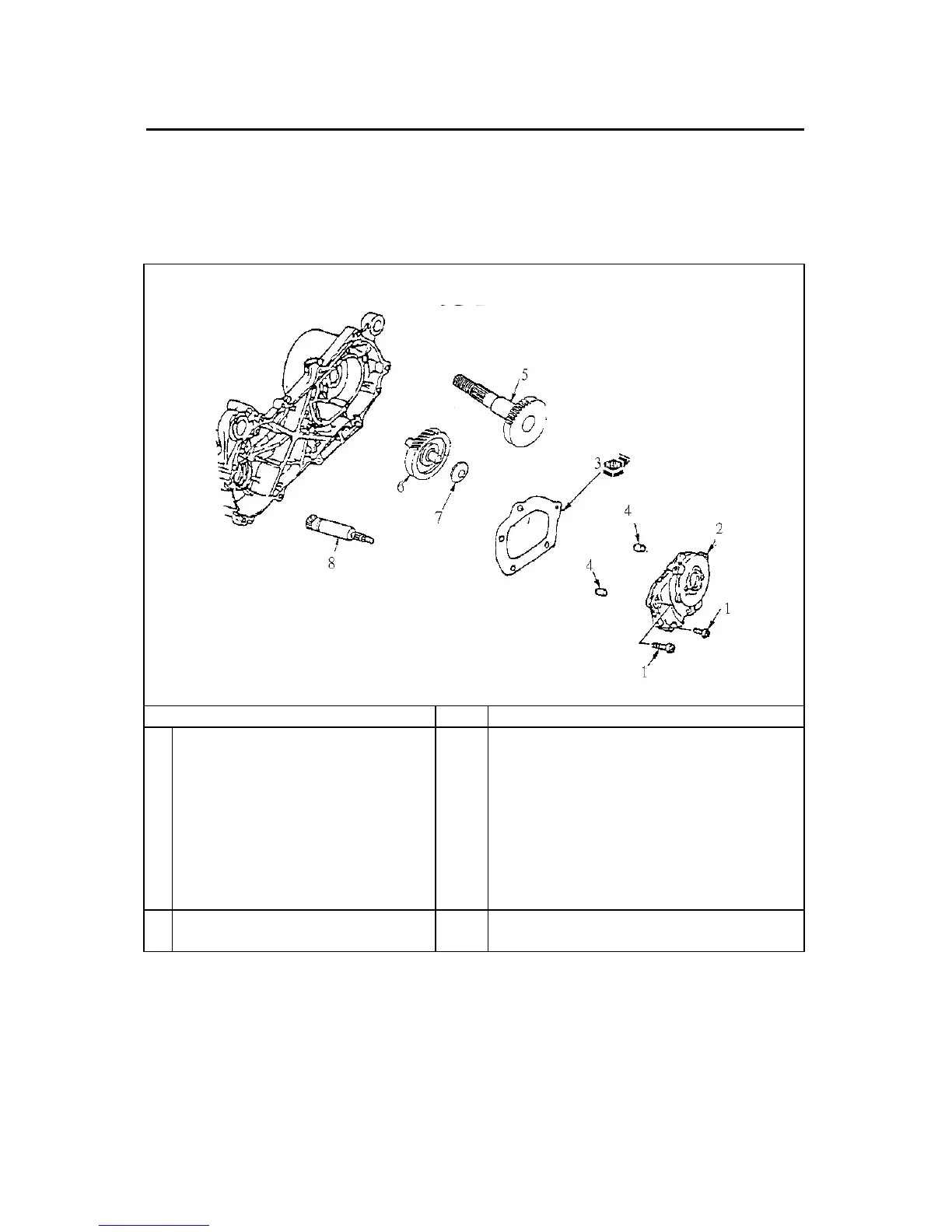

Disassembly of primary drive gear / final reduction mechanism
Disassembly of rear tire(→11-2).
Disassembly of clutch / drive face(→7-6).
Notice:
First drain the oil of transmission.
Operation / Parts name Q’ty Remark
1
2
3
4
5
6
7
8
Disassembly
Bolt
Mission cover
Washer
Dowel pin
Drive axle
Main axle comp.
Plain washer
Primary drive gear
5
1
1
2
1
1
1
1
‧Check the wear & damage of shaft
and gear. Change new one. (→8-3)
Assembly
8→1
‧Operation with sequence in reverse
of disassembly.
