HER CHEE ADLY RT-50 - Chapter 10: Rear Brake Disassembly

Chapter 10 Rear Wheel / Suspension / Brake

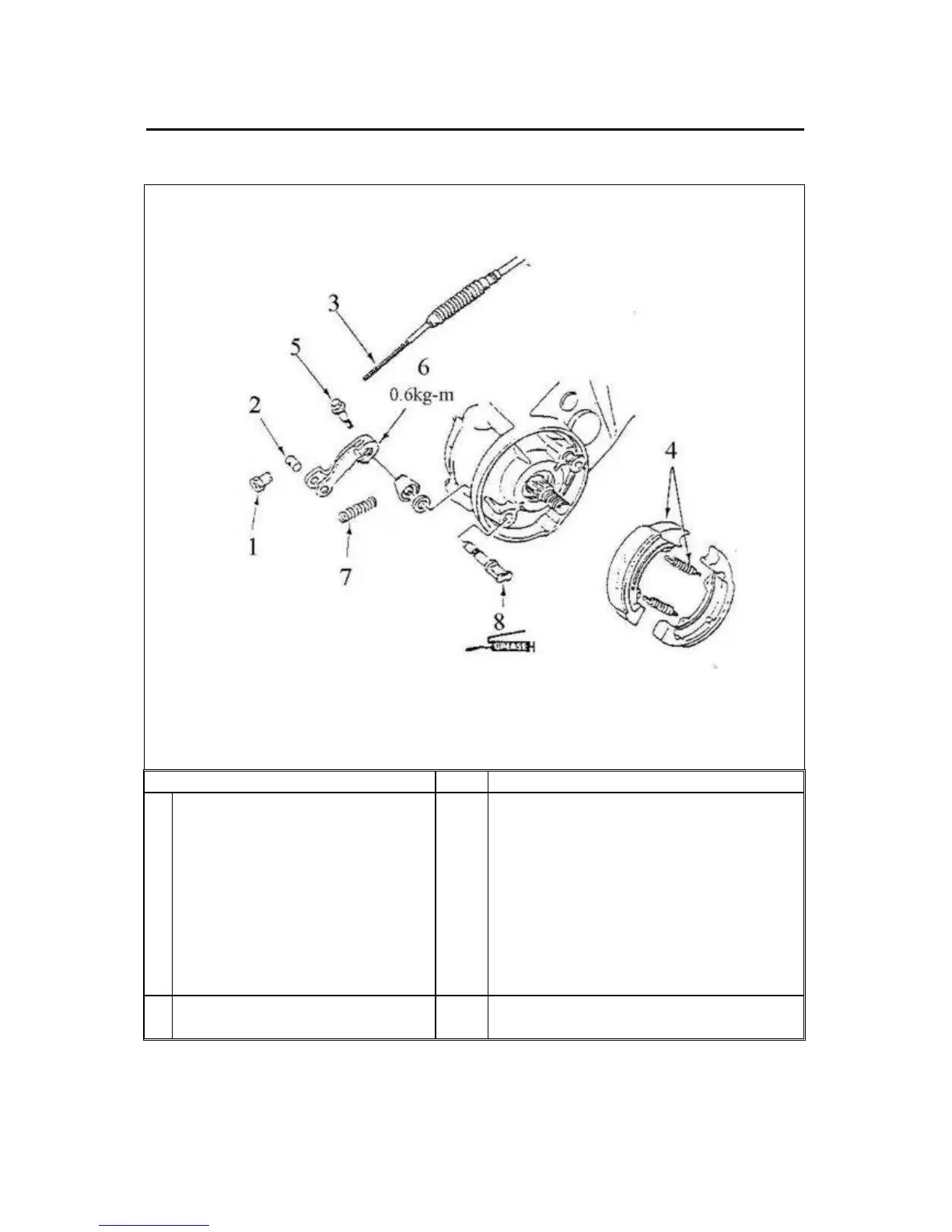

Disassembly / Assembly of Rear Brake
Disassemble rear wheel first before this operation.
Operation / Parts name Q’ty Remarks
1
2
3
4
5
6
7
8
9
Disassembly
Adjusted nut of rear brake
Rear brake fixture
Rear brake cable
shoe/shoe strain spring of rear
brake
Hex washer face bolt
Rear brake arm
Reset spring
Brake cam shaft
1
1
1
2/2
1
1
1
1
1
Assembly
8→1
Operation with sequence in reverse
procedure.
