Chapter 9 Front Wheel / Front Suspension / Front Brake

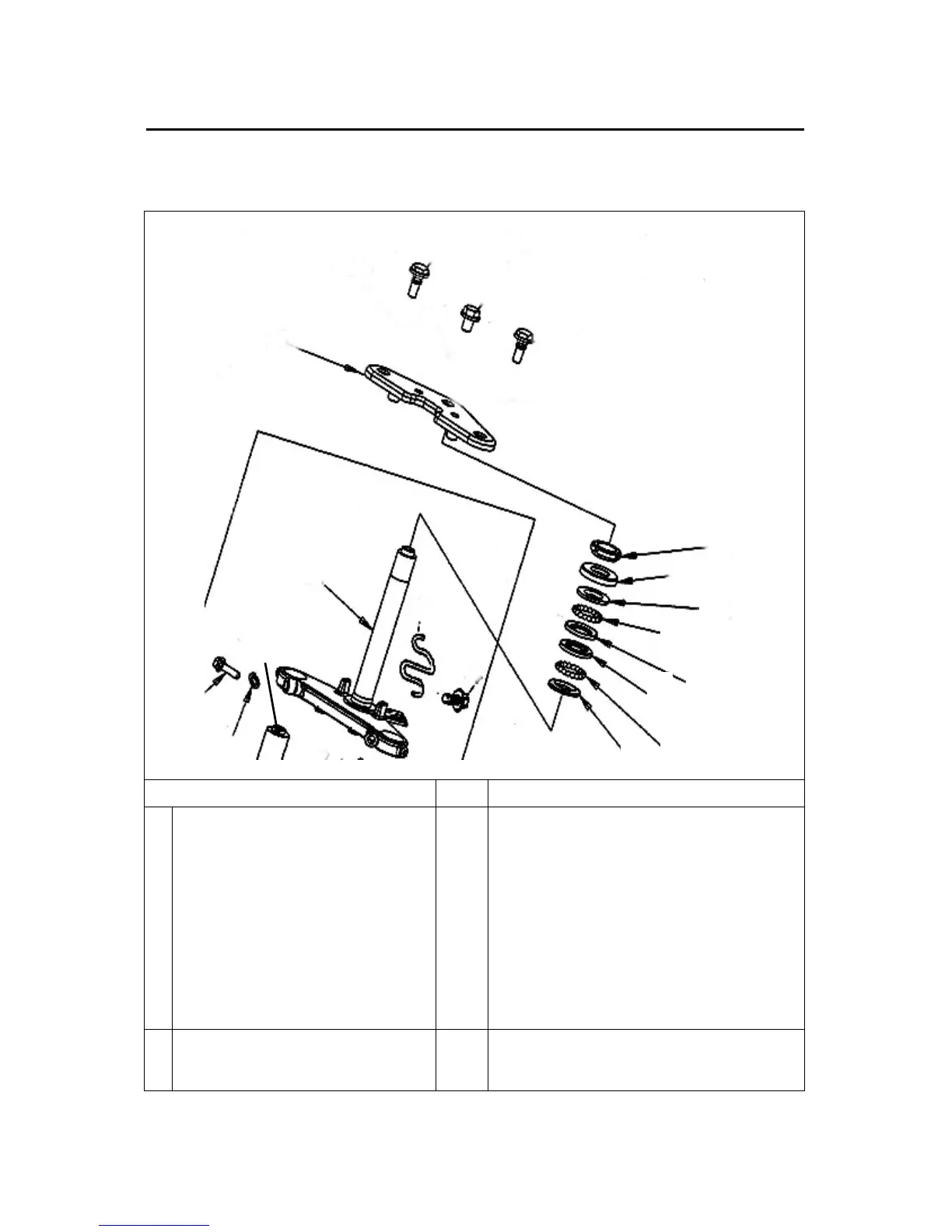

Disassembly of Steering Stem
Disassembly of front wheel.
Disassembly of steering handle
Operation / Parts name Q’ty Remarks
1
2
3
Disassembly
Spanner nut
Steering stem dust cover
Lathe cone on steering top #2
2
1
1
WARNNING:
Not to damage steering stem.
5
6
Steel ball race
Lathe on steering inner #3
2
2
9
10
11
Hex bolt
Washer
L/R Front fork
2
2
2
WARNNING:
Remove L/R tube by loose these two
hex bolts.
Assembly
111
Operation with sequence in reverse
procedure.
1
2
3
5
3 6
5
6
11
10
9
