Chapter 6 Transmission

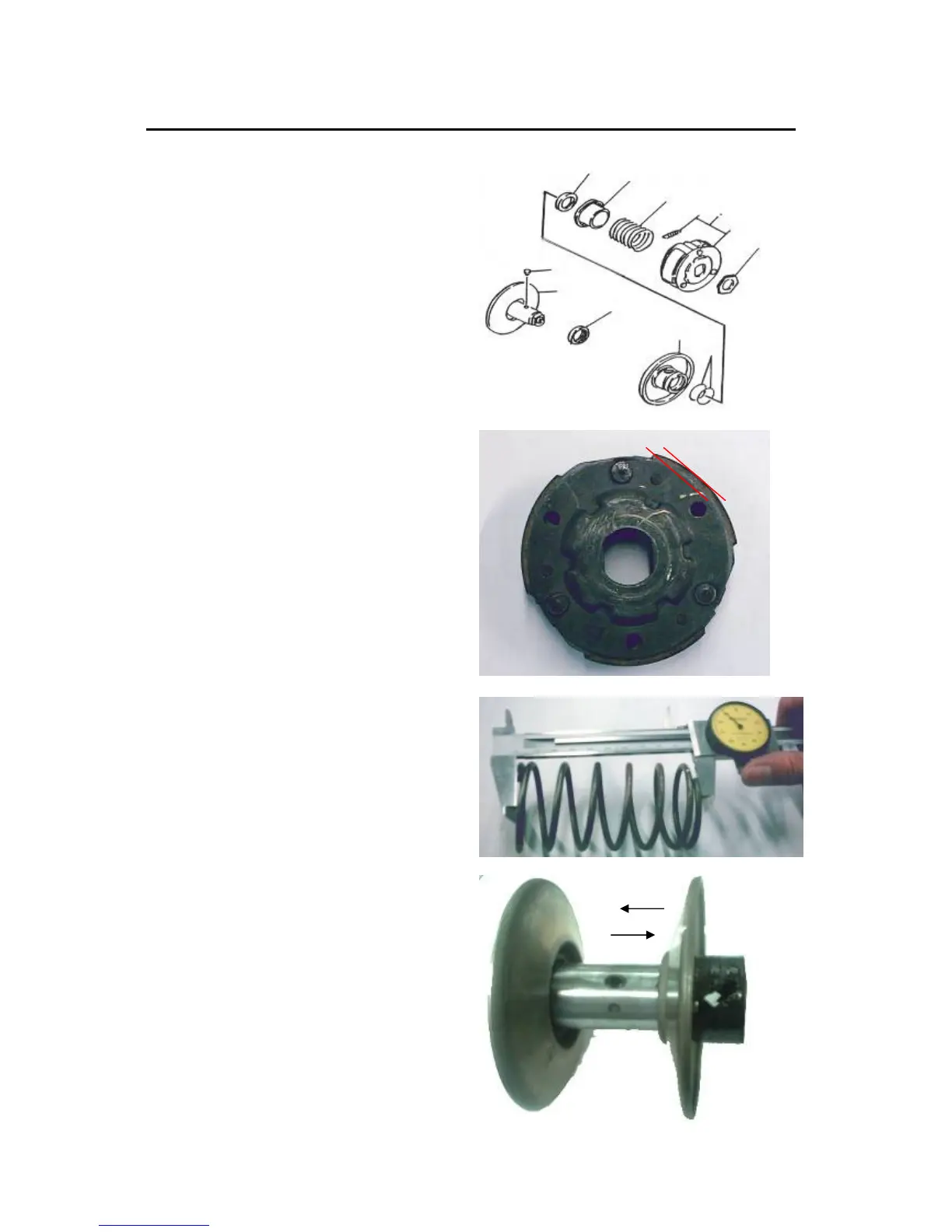

Disassembly Driven Pulley Sliding
Ass’y
Notice:
Use a bench pliers to fix the sliding
ass’y before loosen nut.
Inspection
Measure the thickness of clutch pads.
Standard: 4.0 mm
Wear Limited: 2.5 mm
Measure the length of clutch reducer
spring.
Standard: 114 mm
Wear Limited: 100 mm
Check the sliding of slot wheel.
