HER CHEE ADLY RT-50 - Chapter 8: Carburetor Disassembly

Chapter 8 Fuel System

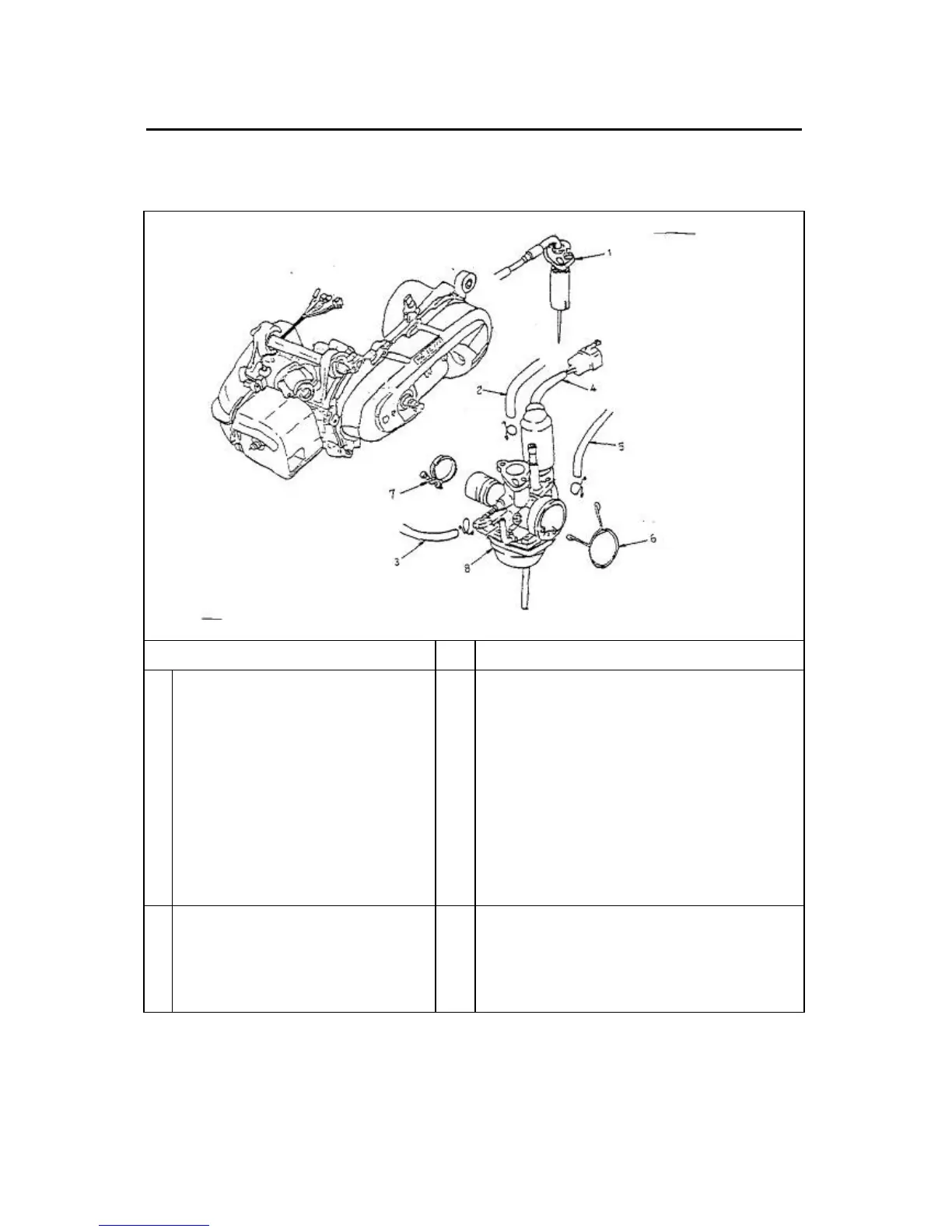

Disassembly of Carburetor
Remove the air cleaner ass’y .
Remove the left body cover
Operation / Parts Name Q’ty Remarks
1
2
3
4
5
6
7
8
Disassembly
Throttle valve set
Gasoline pipe
Motor oil joint
Starter wire of carburetor
Vacuum pressure tube
Clip
Intake manifold hose clamp
Carburetor
1
1
1
1
1
1
1
1
3
Assembly
8→1
Motor oil joint
WARNNING:
Don’t let dust enter into carburetor.
WARNNING: Release air.
