HER CHEE ADLY RT-50 - Disassembly of Left Crank Case; Chapter 06 Transmission

Chapter 6 Transmission

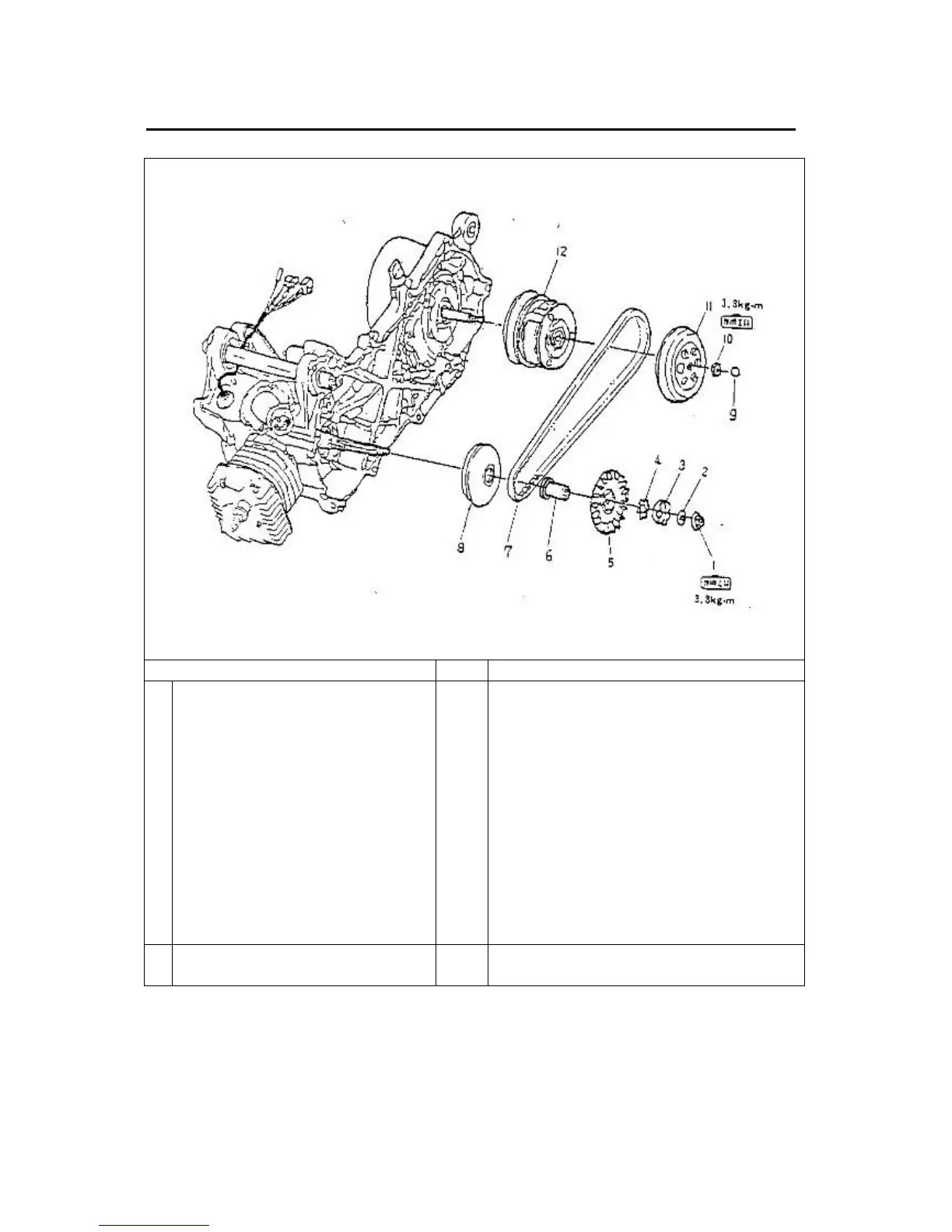

Disassembly of Left Crank Case (→7-2)
Operation / Parts name Q’ty Remark
1
2
3
4
5
6
7
8
9
10
11
12
Disassembly
Hex washer face bolt
Cone spring washer
One-way clutch
Clamp washer
Primary fixed sheave
Bushing
V-Belt
Primary sliding slot wheel
Oil ring
Hex nut
Covering of clutch
Drive face ass’y
1
1
1
1
1
1
1
1
1
1
1
1
WARNNING:
Don’t hurt transmission belt.
Separation / assembling (→ 7-7)
Separation / assembling (→ 7-8)
Assembly
12→1
‧Operation with sequence in reverse
of disassembly.
