Chapter 6 Transmission

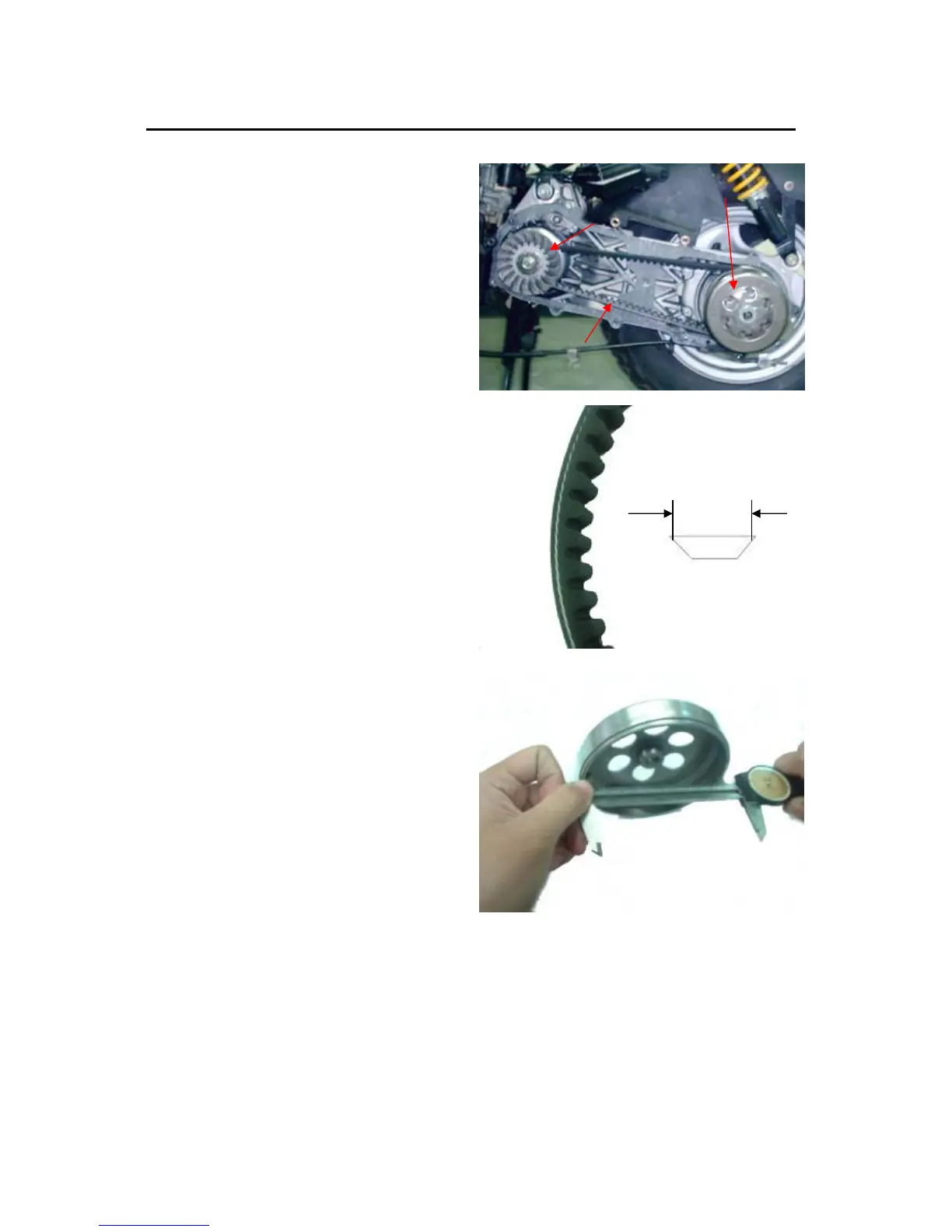

Disassembly Driver and Driven
Pulley
Remove driver and driven pulley fixed
nuts.
Remove driver pulley fix sheave.
Remove driven pulley ass’y with V belt.
Pull up driven pulley sliding slot from
driven pulley ass’y to remove the V belt.
Inspection
Measure the width of V belt.
Standard: 17.7 mm
Wear Limited: 16.6 mm
Measure the inside width of clutch cover.
Standard: 112.0 mm
Wear Limited: 112.5 mm
Driver pulley
Driven pulley
V belt
