HER CHEE ADLY RT-50 - Chapter 4: Oil Tank Dismounting

1
2
3
4
Oil tube from oil tank
Oil tube to carburetor
Pan phillips bolt
Control cable
1
1
2
1
WARNNING:
Clogging the pipe with clamp or plug
for avoiding fuel flow out.
Remove from both side of motor oil
pump.
Assembly
• Assembly with sequence in reverse
of disassembly.
＊WARNNING:
−Smear motor oil to new O ring ,then
assembly motor oil pump.
−The oil pump must installed correctly
into crank case.
Chapter 4 Cylinder Head / Cylinder / Piston

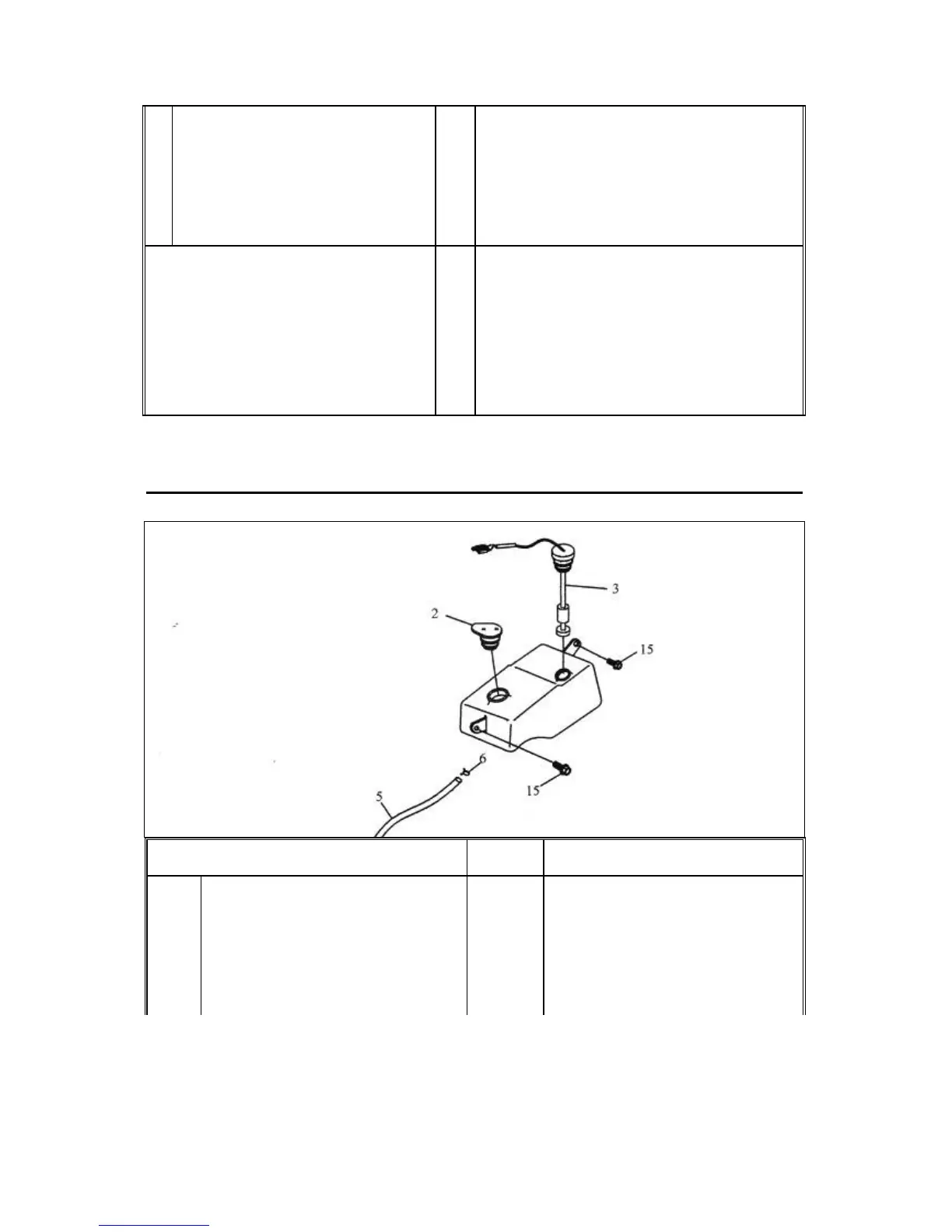

Dismounting of Oil Tank
Operation / Parts Name Q’ty Remarks
2
3
15
5
6
Disassembly
Oil cap
Oil level sensor
Pan phillips bolt
Oil tube to oil pump
Motor oil pump
1
1
2
1
1
WARNNING:
Fill motor oil with clean
container.
