HER CHEE ADLY RT-50 - Chapter 6: Left Crankcase Cover Disassembly

10-2
Chapter 6 Transmission

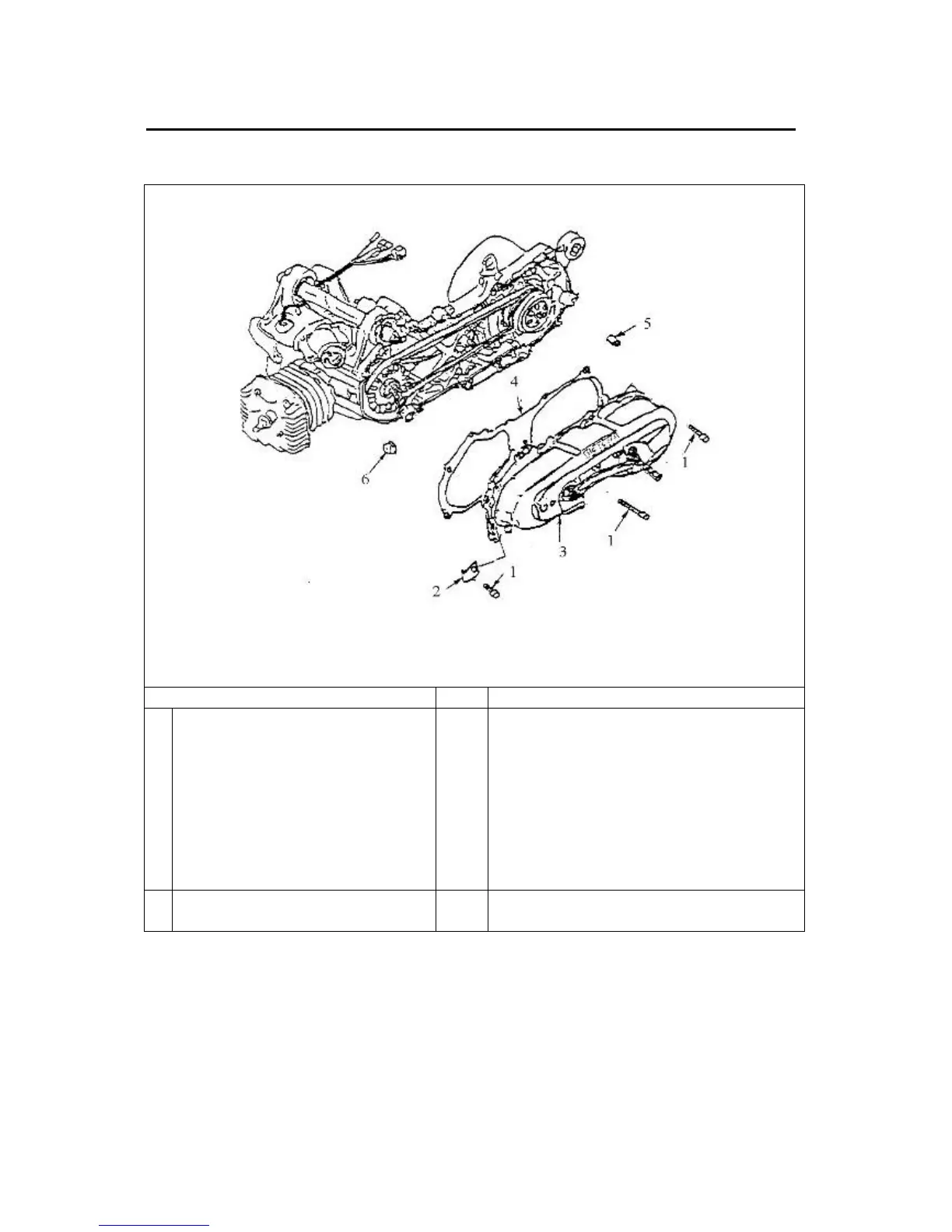

Disassembly of Left Crankcase Cover
Remove air cleaner first before start to disassembly CVT cover.
Operation / Parts name Q’ty Remark
1
2
3
4
5
6
Disassembly
Hex socket bolt
Carburetor tube bracket
Left crank case cover
Crankcase cover gasket
Dowel pin
Grommet
12
1
1
1
2
1
WARNNING:
Check the air cleaner whether worsen
or harm.
Assembly
6→1
Operation with sequence in reverse of
disassembly.
