HER CHEE ADLY RT-50 - Chapter 6: Kick Starter Disassembly

10-3
Chapter 6 Transmission

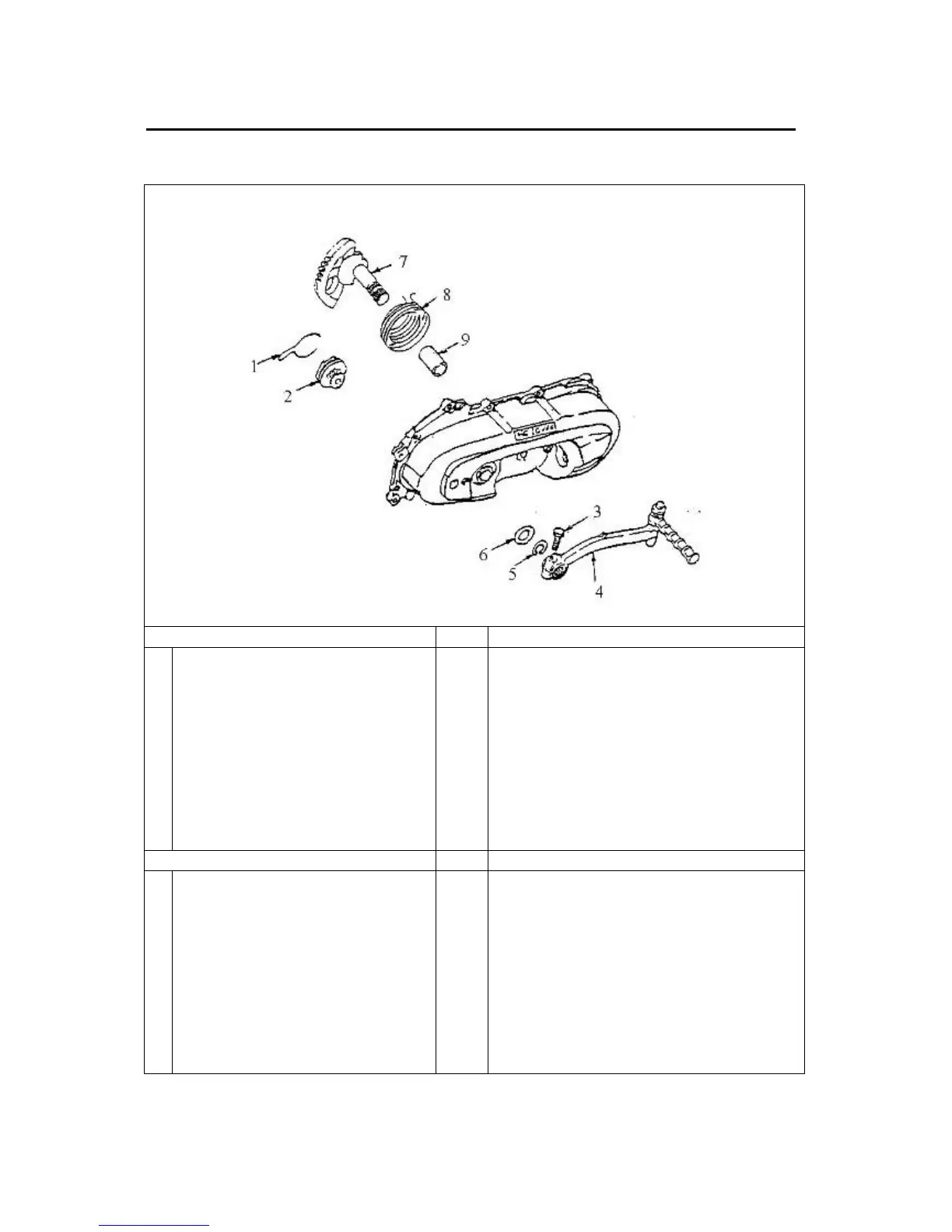

Disassembly of Kick Starter
Operation / Parts name Q’ty Remark
1
2
3
4
5
6
7
8
9
Disassembly
Kick pinion spring clip
Kick pinion
Hex washer face bolt
Kick crank
External ring clamp
Plain washer
Starting shaft ass’y
Starting shaft reset spring
Bushing
1
1
1
1
1
1
1
1
1
WARNNING:
Rotating pedal kick crank and remove
the assembly.
Operation / Parts name Q’ty Remark
9
8
7
6
5
4
3
2
1
Assembly
Washer
Starting shaft reset spring
Starting shaft ass’y
Plain washer
External ring clamp
Kick crank
Hex washer face bolt
Kick pinion
Kick pinion spring clip
1
1
1
1
1
1
1
1
1
WARNNING:
Unable into main shaft fix position when
inside and outside reset spring overlap,
use flat-driver will inside、outside spring
part, then press main shaft.
