Chapter 8 Fuel System

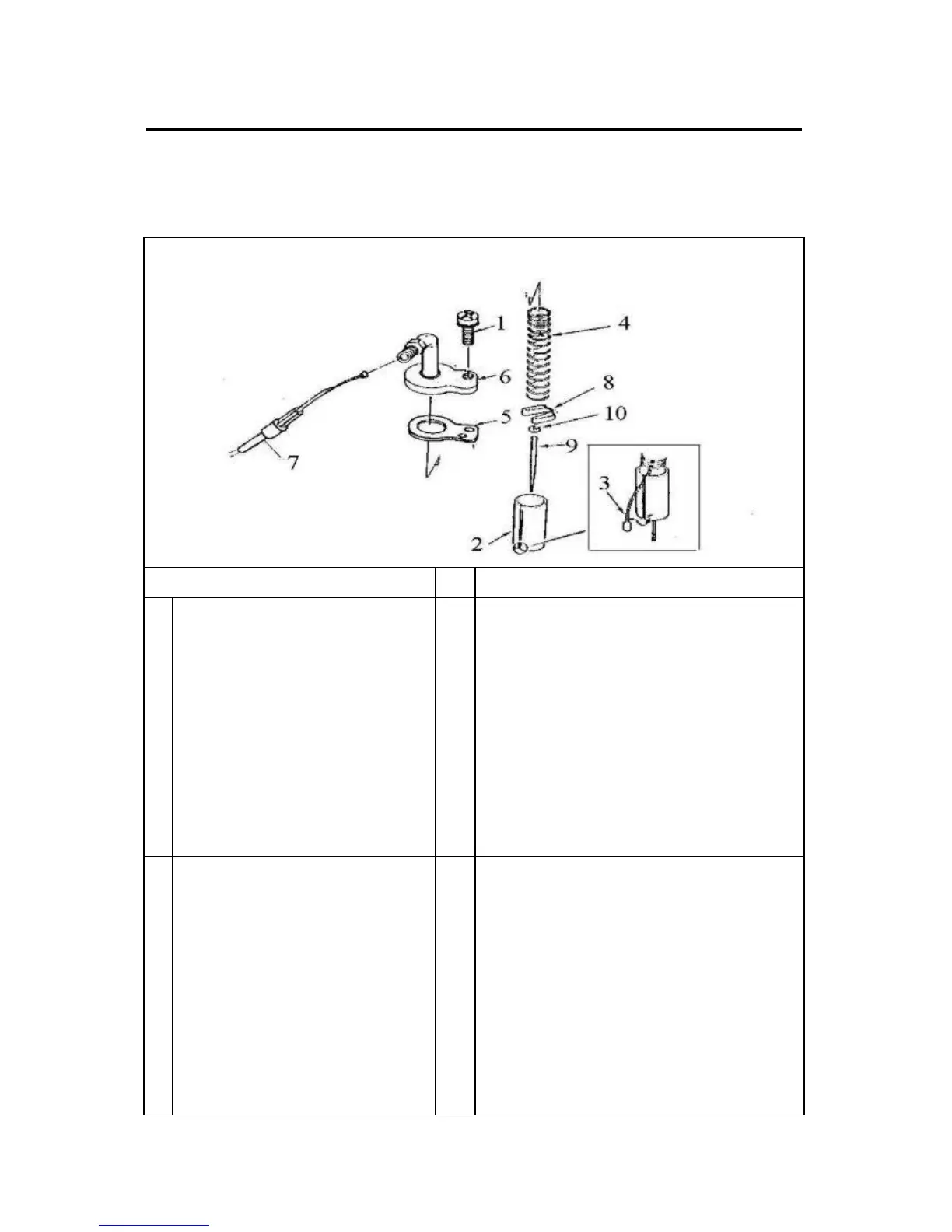

Disassembly / Assembly Valve of Throttle
Disassemble of left body covering
Adjust the free play of throttle
Adjust of reverse rotation of idle speed
Operation / Parts Name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
Disassembly
Pan phillips bolt
Throttle valve
Throttle cable
Throttle valve spring
Carburetor washer
Throttle cover
Sealing set
Retainer
Needle
Clamp
2
1
1
1
1
1
1
1
1
1
WARNNING:
Loosing top cap of carburetor, and
removing.
WARNNING:
Remove from guide wire of throttle
valve.
10
9
8
7
6
5
4
3
2
1
Assembly
Clamp
Needle
Retainer
Sealing set of guide wire
Throttle cover
Washer
Throttle valve spring
Throttle cable
Throttle valve
Pan phillips bolt
1
1
1
1
1
1
1
1
1
1
WARNNING:
Assembly of needle nozzle.
WARNNING:
Assembly of throttle valve.
WARNNING: Assembly of throttle cable.
WARNNING:
Aim the ditch of throttle valve to chamber
then install throttle valve into carburetor.
Lock the throttle cover.
