Chapter 11 Electrical Device

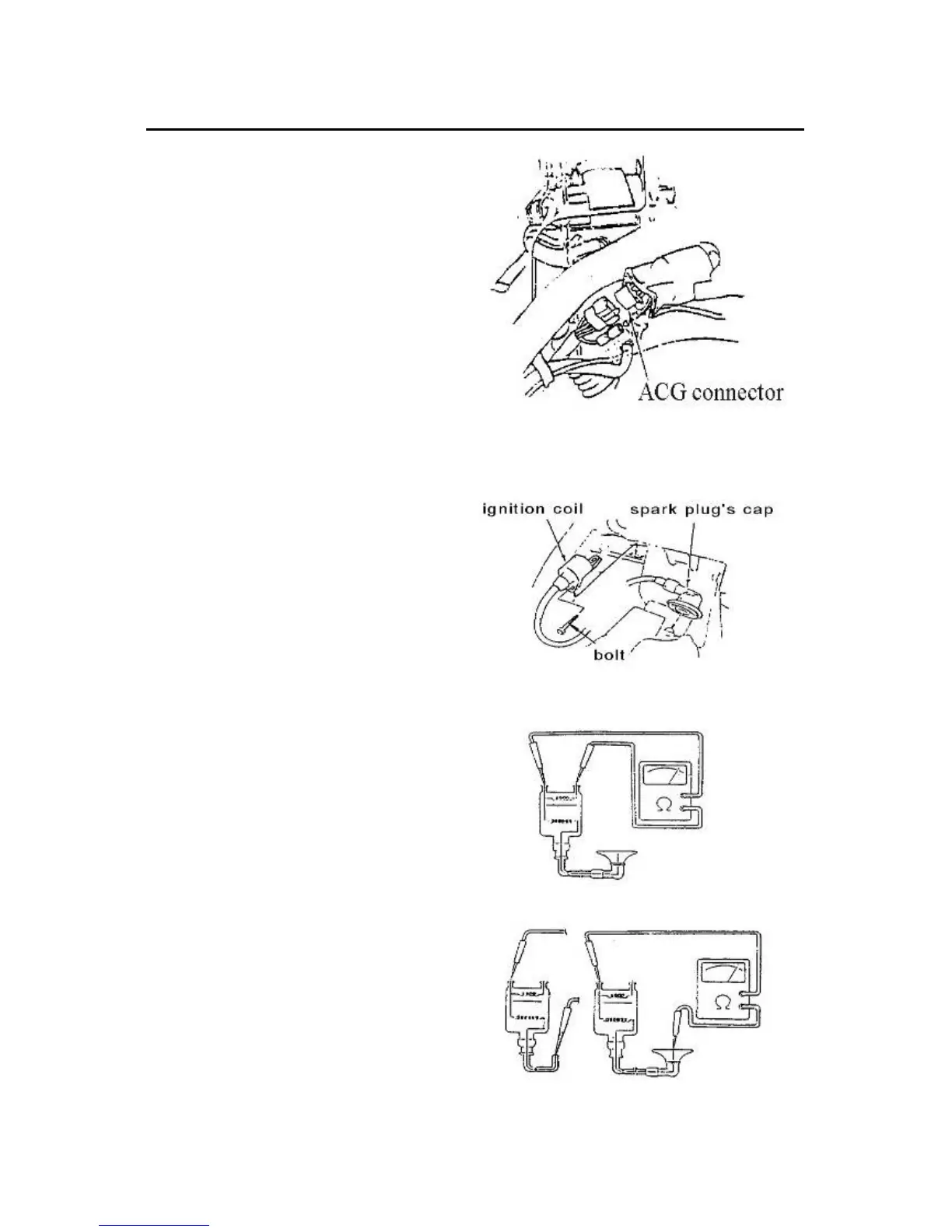

ACG ( Charging Coil ) Check
WARNNING:
Checking the engine connected
with starter motor.
Disconnect ACG connector.
Check resistance of charging wire &
lighting wire.
Standard valve (20 )℃
Charging wire : 0.2~1.0
Lighting wire: 0.1~0.8
Ignition Coil
Disassembly
Disconnect the spark plug cap.
Disconnect coil wire and loosen the fix
bolts, then remove ignition coil.
Assembly
Install in reverse order of disassembly.
WARNNING:
Guide wire must be installed in the right
place.
Conduction Test
Check once coil resistance of ignition
terminal.
Standard valve (20
℃
): 0.3~0.5Ω
