HER CHEE ADLY RT-50 - Chapter 11: ACG and Ignition Coil Checks

Chapter 11 Electrical Device

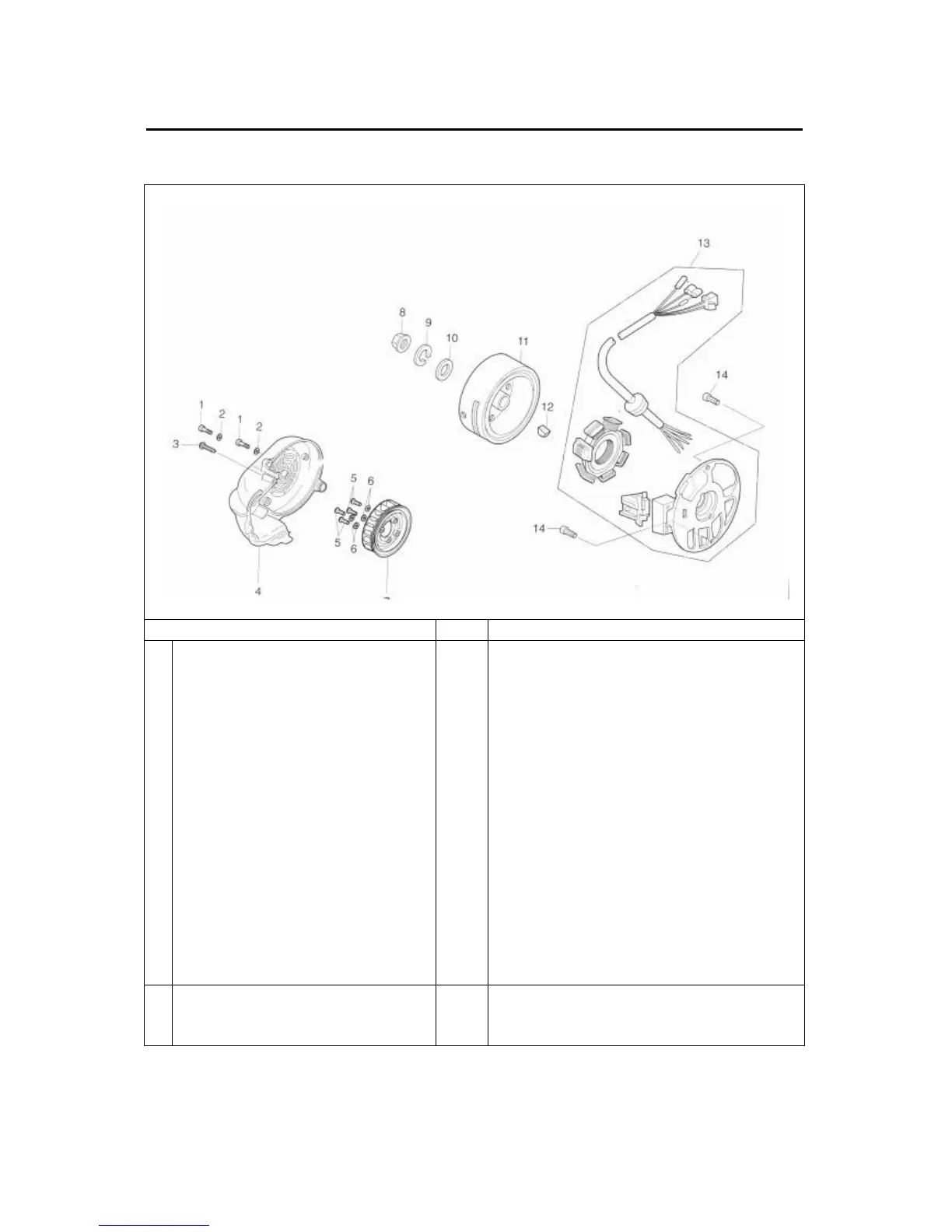

Disassembly of ACG
Operation / Parts name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Disassembly
Hexagon socket bolt
Plain washer
Self-tapping screw
Cap of electric disc
Hexagon socket bolt
Plain washer
Fan
Hexagon nut
Spring washer
Plain washer
Fly wheel of generator
Semi-cycle of electric disc
Whole body bolt
Hexagon socket bolt
2
2
1
1
4
1
1
1
2
1
2
1
1
1
WARRNING:
Take the good care, no hurt coil.
Assembly
14→1
Assembling with sequence in reverse of
disassembly.
