1 Side stand indicator Light glows when the vehicle is parked on the side stand.
2 High beam indicator Light glows when headlamp is in Hi Beam.
3 Speedometer Indicates riding speed.
4 Fuel gauge Indicates approximate fuel quantity (page 14).
5 Service reminder Displays when a service is due (page 14).
6
Light glows and goes off when ignition key is turned
Immobilizer indicator
“ON”.
Shows the distance traveled since the last reset
7 Tripmeter
(page 15).
8 Turn signal indicator (R) Flashes when right turn signal switch is operated.
9 Odometer Shows accumulated mileage (page 14).
10 Reset button Button when long pressed resets tripmeter to zero.
11 Turn signal indicator (L) Flashes when left turn signal switch is operated.

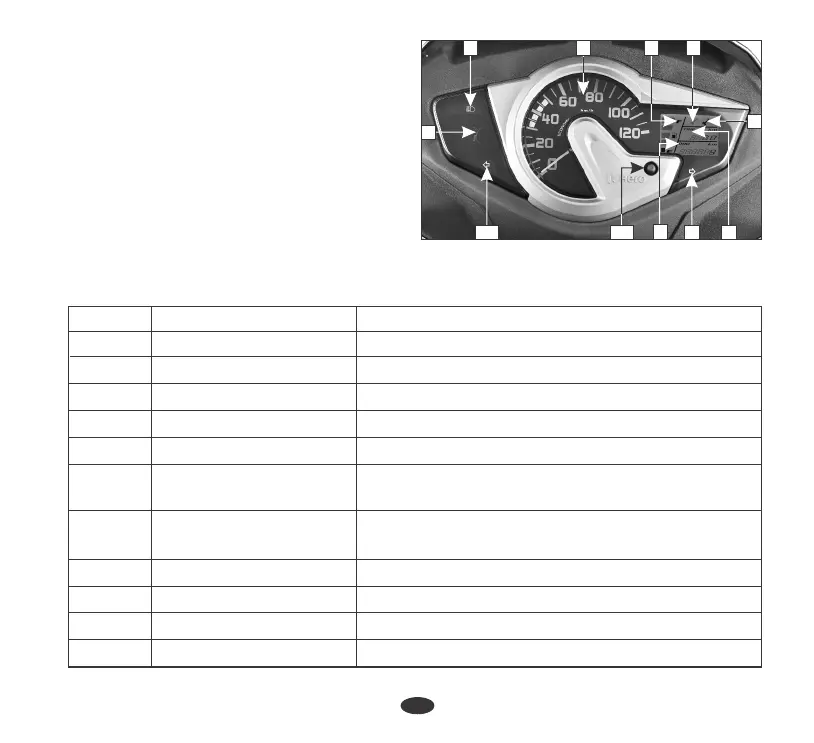

PART FUNCTIONS
The indicators are in the speedometer panel
above the headlamp. The functions are as
below.
Instruments and Indicators
Sl. No.
Description
Function
1
6
8
32
11
10
9
4 5
7
