57

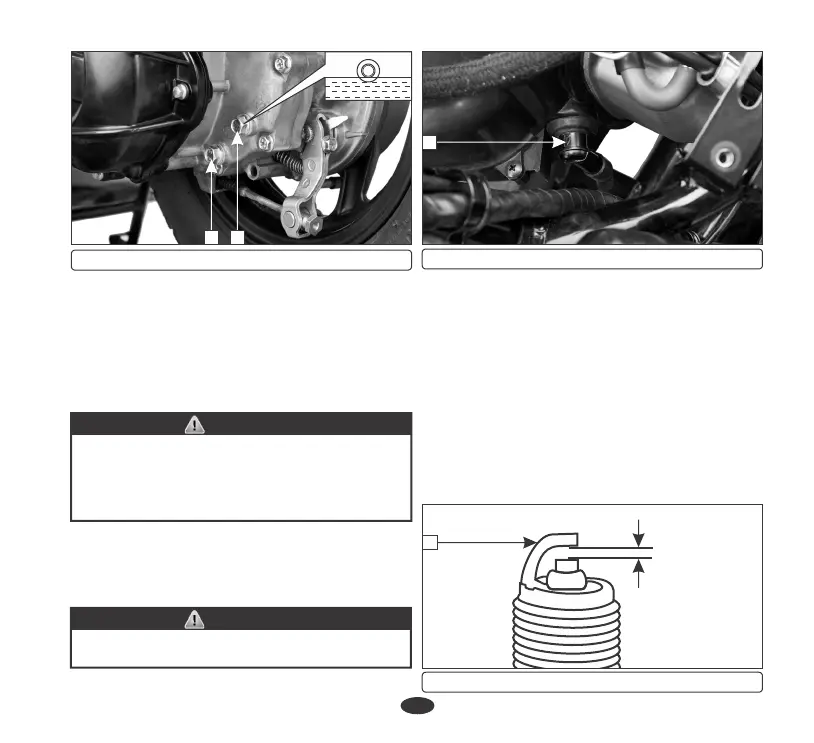

(1) Drain bolt (2) Check bolt
At draining: 0.10 Litre
At Transmission Disassembly: 0.12 Litre
î Install the oil level check bolt with a new
sealing washer and tighten it.
2
WARNING
î Make sure that no oil gets on the tyre or
wheel.
î While refilling the oil make sure that no
foreign material enters the final drive
transmission.
1
(1) Noise suppressor cap
SPARK PLUG
Recommended spark plug.
Champion-PRZ 9 HC (Federal Mogul)
Refer to the safety precautions (page 48).
Never use a spark plug with an improper heat
range. Severe engine damage could result.
WARNING
î Remove the center cover (page 33 ).
1
î Check the spark plug gap using a wire-type
feeler gauge. If adjustment is necessary,
bend the side electrode (2) carefully.
î Clean any dirt around the spark plug base.
î Inspect the electrodes and center
porcelain for deposits, erosion or carbon
fouling. If the erosion or deposit is heavy,
replace the plug. Clean carbon or wet fouled
plug with a plug cleaner.
î Remove the spark plug using the
wrench plug provided in the tool kit.
î Disconnect the noise suppressor cap (1)
from the spark plug.
(2) Side electrode
2
î Fi l l the t r a nsm i s si o n cas e w i th
recommended oil through the check bolt
hole up to the bottom edge of the bolt hole.
To Next Page
