Adjustment
Right hand front brake cable (A) on “1” side
î Push the integrated brake arm (4) by hand
in the direction as shown.
î Turn the first adjuster nut (5) till you cannot
turn it by hand.
1
2
(i)
(ii)
4
5
Measured at the tip of brake levers, free play
should be maintained at 10-20 mm.
(i) Decrease free play (ii) Increase free play
(4) Integrated brake arm (5) First adjuster nut
16
A
Brakes are items of personal safety and should
always be maintained with proper adjustments.
BRAKES (Integrated braking)
(Information you need to operate this scooter)
When one applies the left lever, front & rear
brakes activate jointly.

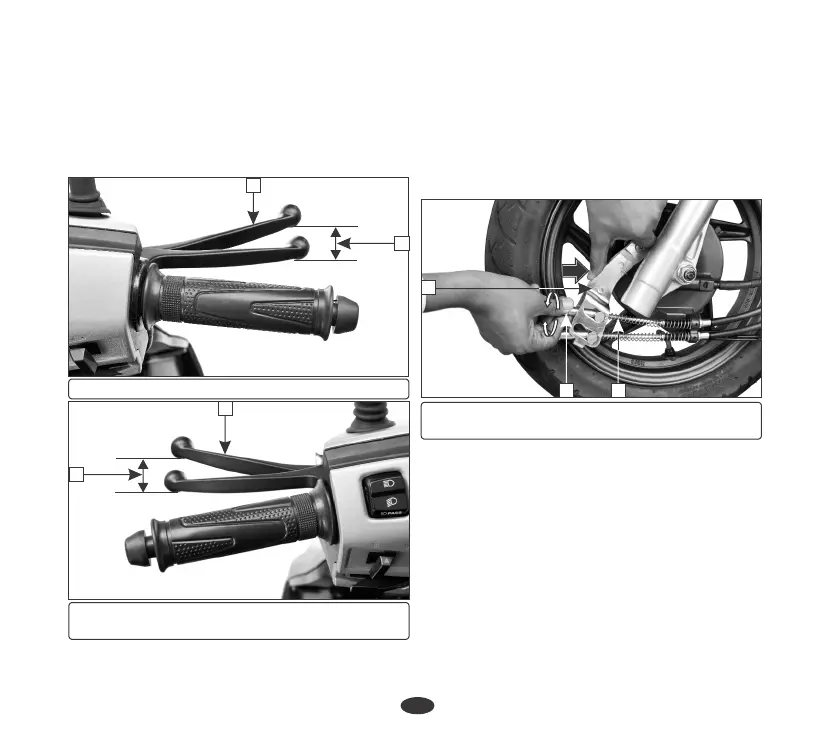

MAJOR COMPONENTS
(1) Front brake lever
1
3
(2) Integrated brake lever
(3) Free play 10-20 mm
2
The distance, the front brake lever (1) and
integrated brake lever (2) moves before each
brake starts to engage is called free play (3).
3
î If the free play is more than 20 mm further turn
the adjuster nut to obtain desired free play.
FREE PLAY: 10-20 mm
î Push the integrated brake arm (4) by hand
in the direction as shown.
î Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
î Check the free play of right lever.
î After ensuring the gap, turn the second
adjuster nut counterclockwise by half rotation.
Left hand front brake cable (B) on “2” side.
