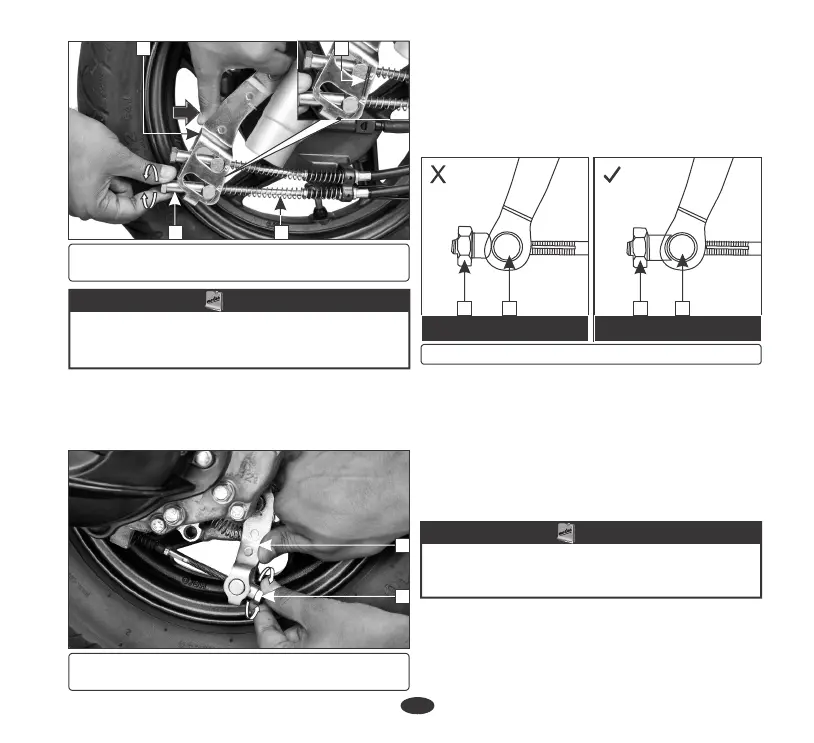

î Check the free play of integrated brake lever.
Rear brake
î Make free play adjustment by turning the
adjuster nut (8) in the brake arm (9).
17
(i) Decrease free play (ii) Increase free play
(8) Adjuster nut (9) Brake arm
(ii)
(i)
9
8
(i) Decrease free play (ii) Increase free play
(6) S econd adjuster nut
NOTE
î “1” & “2” is marked on integrated brake arm.
î Adjustment procedure is same for LX & VX
Model.
1
2
(i)
(ii)
4
7
7
6 B
FREE PLAY: 10-20 mm
î If the free play is more than 20 mm further turn
the adjuster nut to obtain desired free play.
(1) Adjusting nut (2) Brake joint pin
Make sure the cut-out on the adjusting nut
(1) is seated on the brake joint pin (2) after
making final free play adjustment.
Other checks:
Check brake cable for kinks or signs of wear
that could cause sticking or failure.
If proper adjustment cannot be obtained by
this method, visit your Authhorised Hero
MotoCorp workshop.
(A) Cut-out not seated (B) Cut-out seated
1
2
1
2
Make sure the brake arm spring and fasteners
are in good condition.
NOTE
Apply the brake several times and check for
free wheel rotation after the brake lever is
released.
FUEL
Fuel tank
The fuel tank is located under the seat.
The fuel tank capacity is 5.5 litres.
