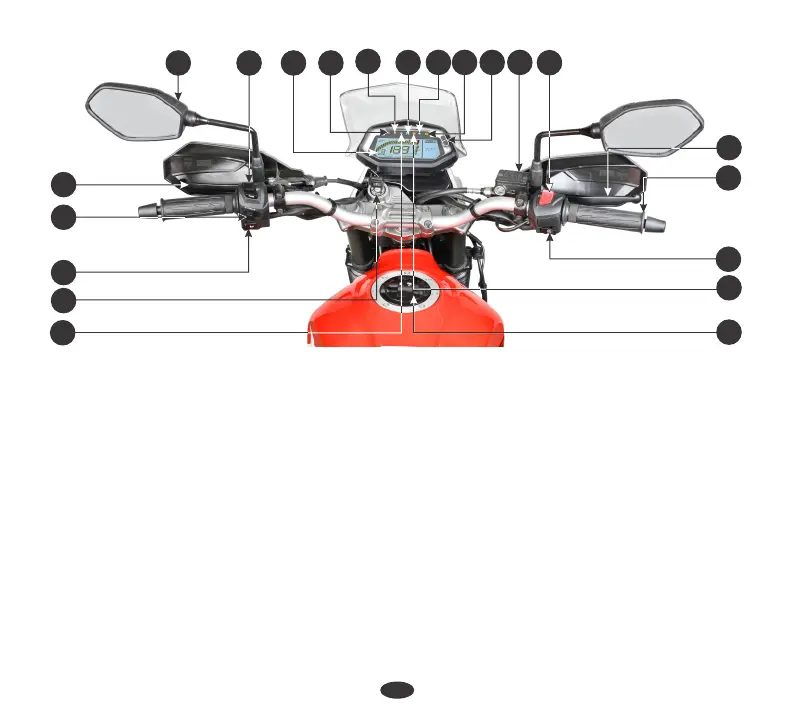

HERO XPULSE 200 PROGRAMMED FI - TOP VIEW; Top View Controls and Indicators

(4) Turn signal switch
(8) LCD panel of Meter console. refer
instruments and indicators (page 17)
for fuel gauge, speedometer and other
features of console
(5) Clutch lever
(2) Ignition switch with key
(3) Horn switch
(1) High beam indicator
(9) Side stand indicator
(10) Left turn signal indicator
(6) Rear view mirrors
(7) Pass lamp switch
(11) Neutral indicator
(12) Right turn signal indicator
(13) Programmed FI malfunction indicator
lamp (MIL)
(14) Mode (M) and Set (S) buttons
(15) Front brake master cylinder/Reservoir
(16) Engine stop/kill switch
(17) Front brake lever
(18) Throttle grip
(19) Electric starter switch
(20) ABS indicator
(21) Fuel tank cap
