Transport and storage
Storage conditions
■ When transporting using a transport aid (e.g., a pallet truck), the trans-
port aid must be able to carry at least 1.6 times the transport weight of
the device.
■ Secure the device to prevent it tipping over and falling down during
transport.
■ Never transport the device sideways or upside down.
■
The device must be stored in the original packaging.
■ Only store the device in dry rooms.
■ The storage temperature must be between -20°Cand+60°C.
■
Humidity must not be condensing. Humidity must be between 10%and
80%.
4.2
Fastening the transport lock
Personnel:
■
Trained user
11
2
3
5
4
4
5
4
1
2

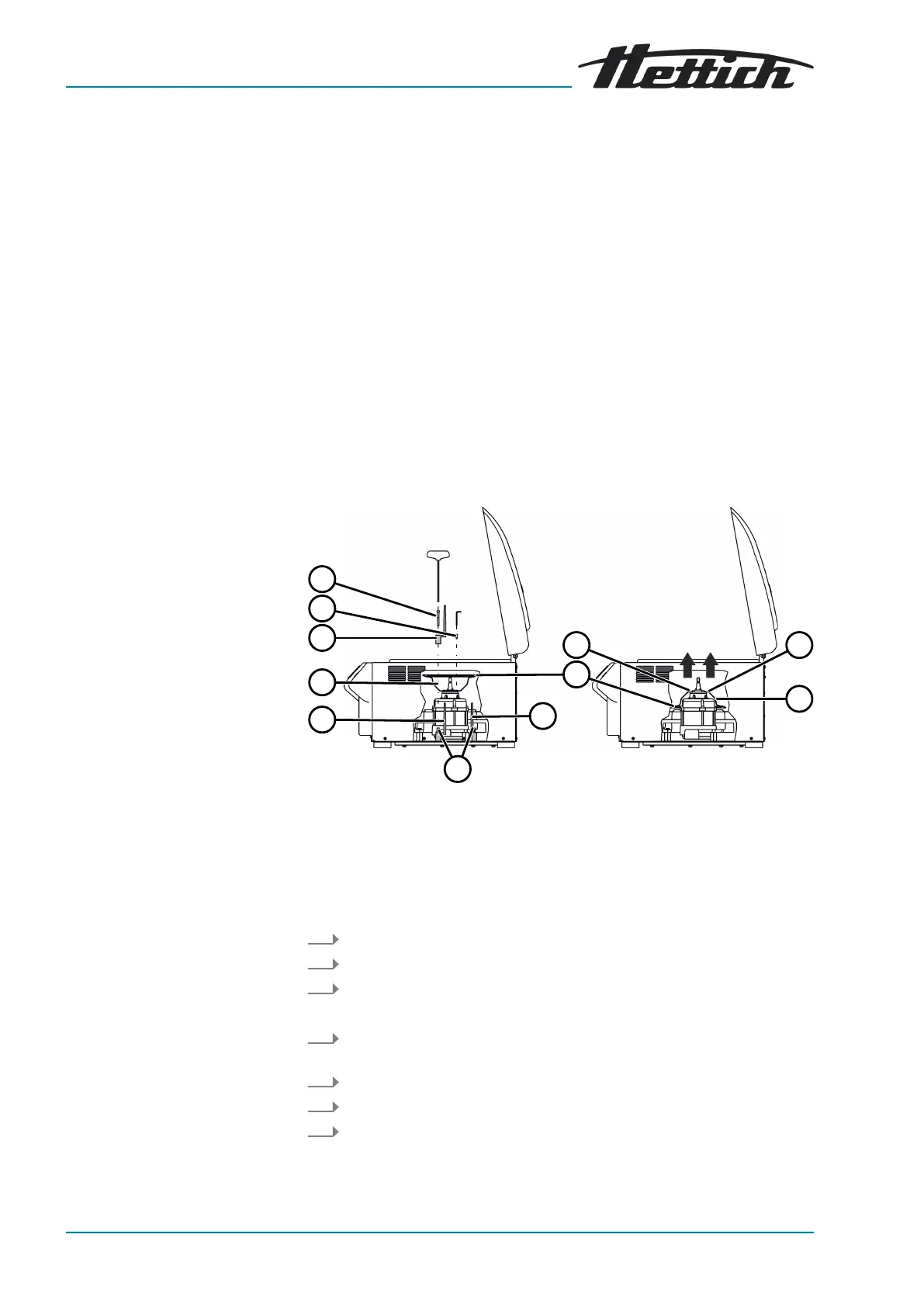

Fig. 20: Transport lock
1 Screws
2 Motor cover
3 *Bellows (only for centrifuges with cooling)
4 Transport lock
5 Transport lock screws
6 Spacer sleeve
1.
Open the lid.
2.
Unscrew the motor cover ( 2 ).
3.
For ROTINA 420 R:
Remove the bellows ( 3 ).
4.
Insert 3 transport locks ( 4 ) and 3 spacer sleeves ( 6 ) and screw them
on using the 3 transport lock screws ( 5 )
5.
Turn over the motor cover ( 2 ) and insert it.
6.
Screw in 4 screws ( 1 ).
7.
For ROTINA 420 R:
Put the bellows ( 3 ) over the edge of the engine cover (2).
