14.5.2 Check the route of the established network connection
This utility will display all the routers present between the destination IP address and this AP. Up to 30 “hops”
(intermediate routers) between the AP and the destination can be monitored.
A basic overview of the Diagnostic Tools screen to check the route of established connection is given below:

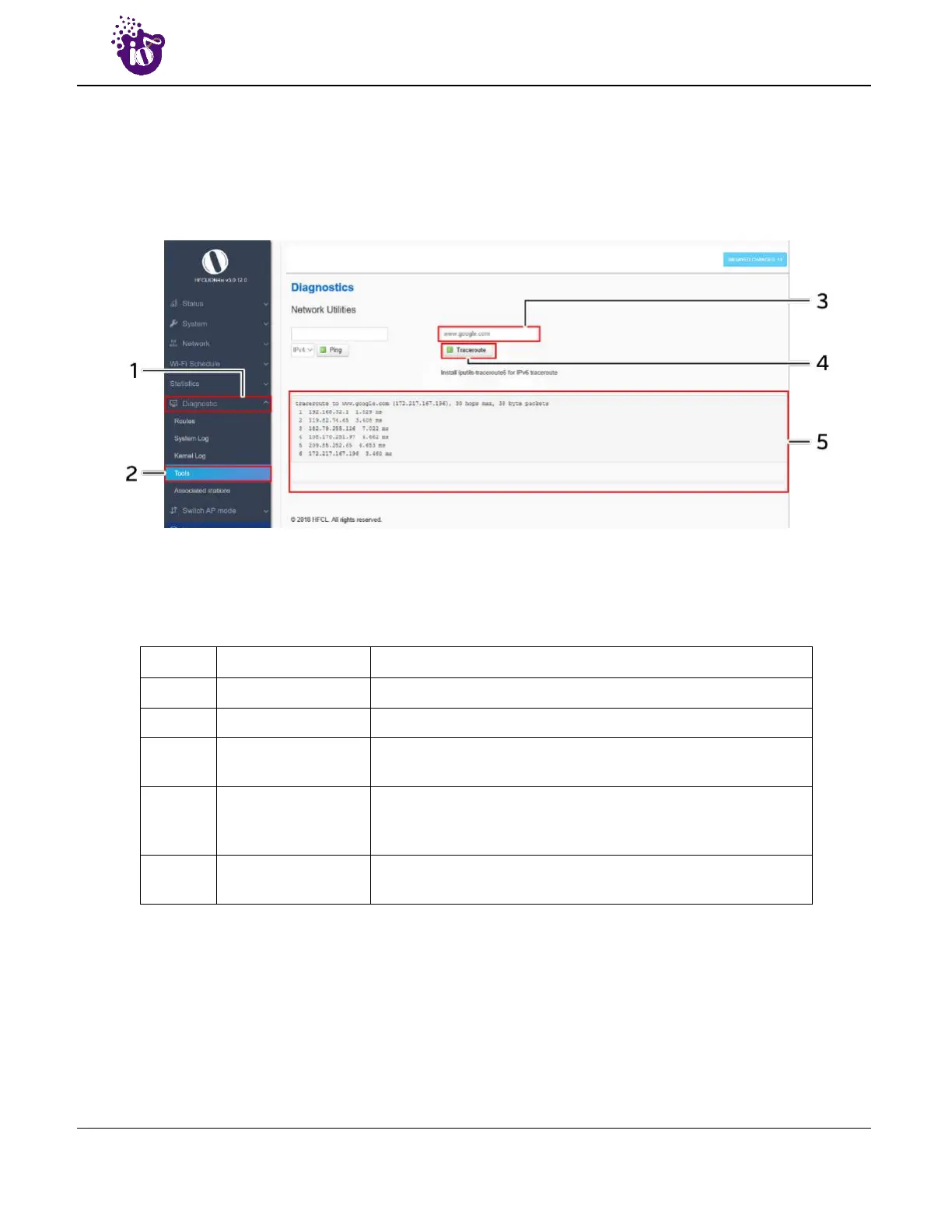

Figure 55: Basic overview of the diagnostics tool screen to check the route of established connection
Follow the steps given below to check the route of established connection:
Table 45: List of actions to check the route of established connection
Callout Name Description
1. Diagnostics Click on “Diagnostics” dropdown
2. Tools Click on “Tools” option
3. IP Address
Enter the IP address or the domain name of the destination with
which the user wants to check the connection route
4. Traceroute
Click on “Traceroute” option to check the connection route. It
traces the network path/route to the entered IP address or
domain name
5. Feedback window
Check the response on the feedback window to know the
connection route.
