16.2.1 2x2 outdoor AP mounting to the Pole
Follow the steps given below and mount the device onto the pole:
1. Align the bracket mounted AP with pole holder and U-bolt as shown below:

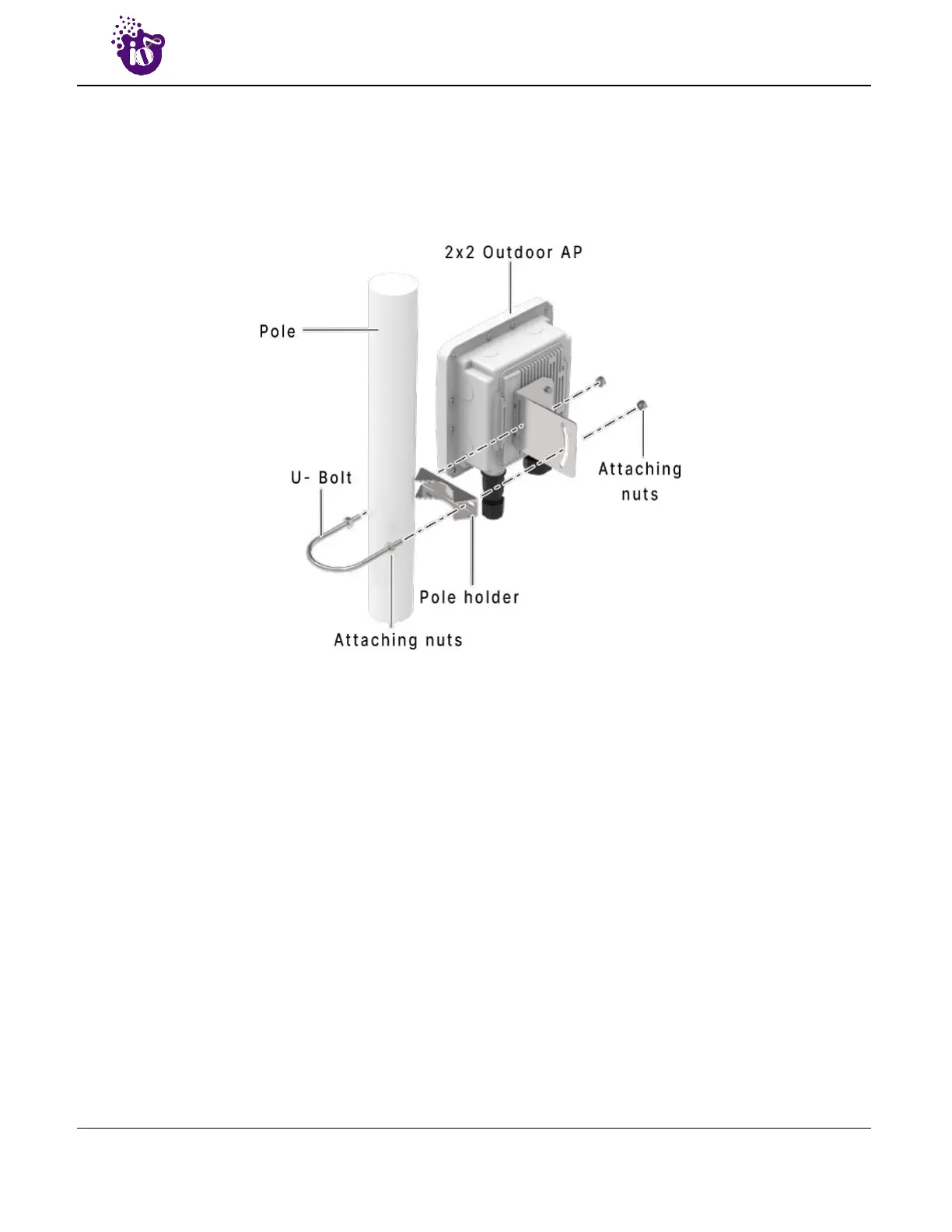

Figure 65: Overview of the 2x2 outdoor AP with pole and mounting bracket attaching parts
2. Pass the U-bolt through the cuts of pole holder and mounting bracket. Tighten it in place with
attaching nuts.
