HFCL Ion4xi - Figure 59: Wall;Ceiling Mounted Attaching Bracket; Figure 60: Alignment of Mounting Bracket with Indoor AP

To Next Page

To Previous Page

Wi-Fi 6 2x2:2 User Manual Rev: A0-00

CONFIDENTIAL

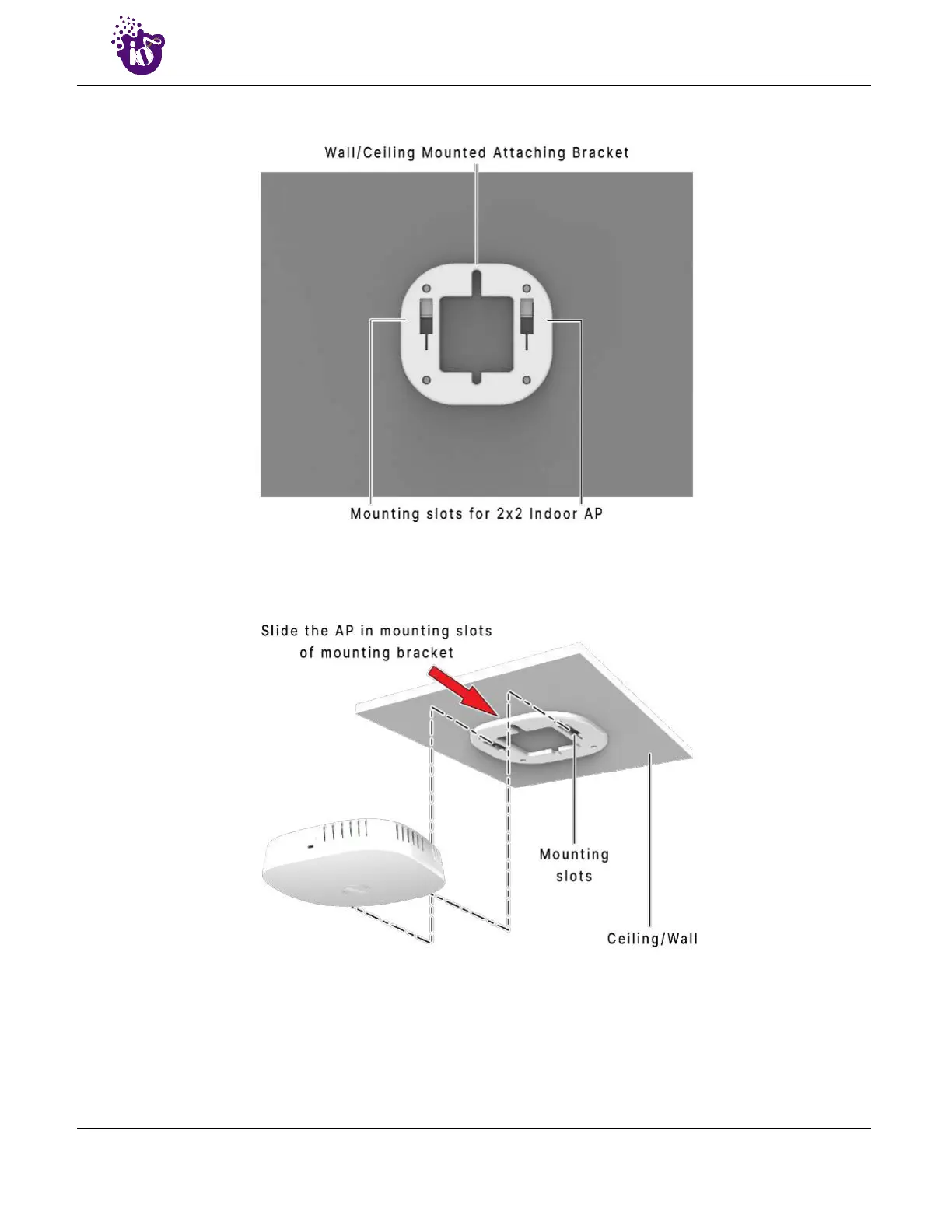

5. Refer the image below for wall mounted attaching bracket:

Figure 59: Wall/ceiling mounted attaching bracket

6. Align the mounting slots of indoor AP and attaching bracket as shown below:

Figure 60: Alignment of mounting bracket with indoor AP
