User Manual of PanoVu Series Network Camera

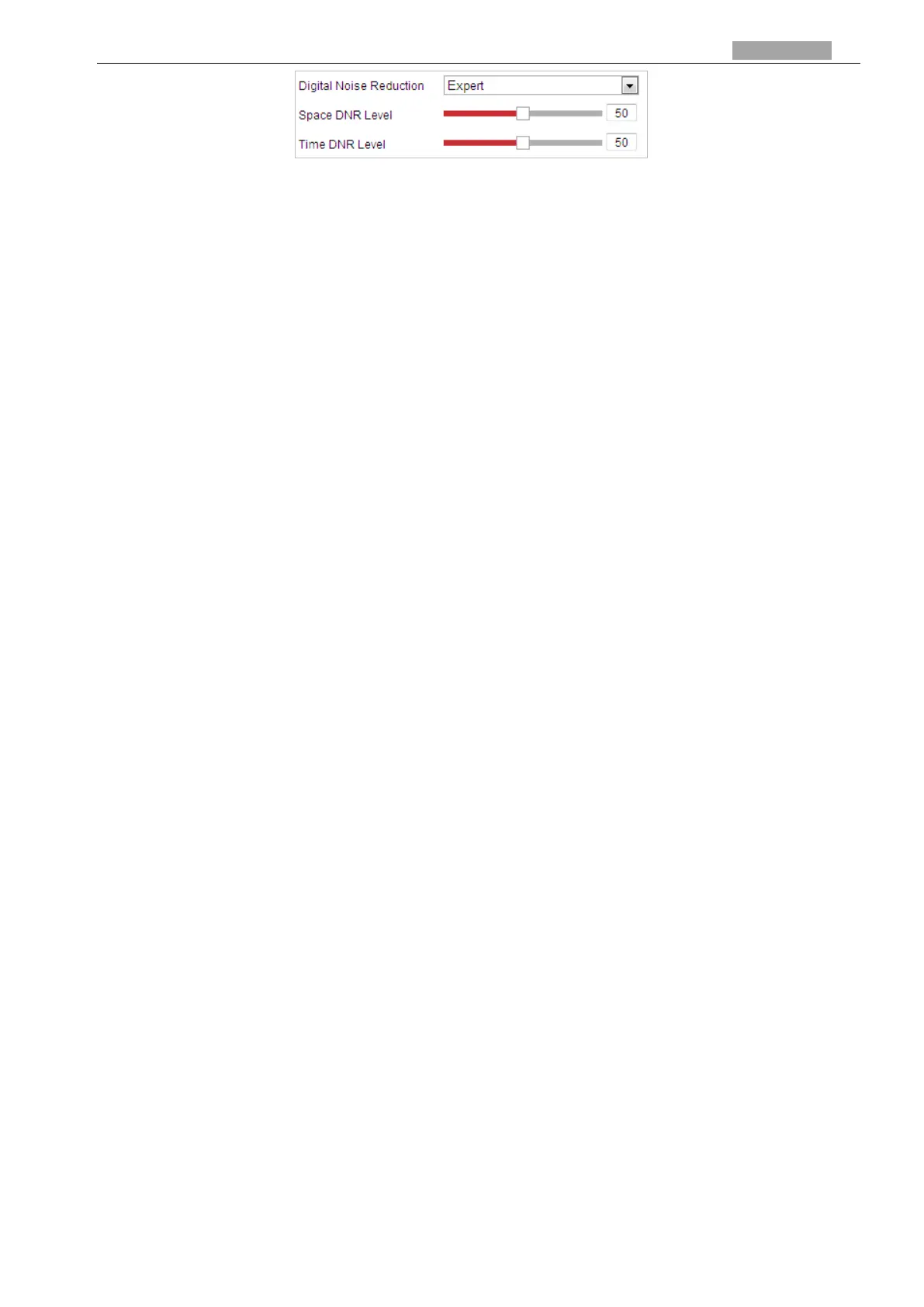

Figure 3-15 Expert Mode
Defog Mode
When there is fog in the image, you can enable this function to get clear image.
EIS (Electronic Image Stabilization)
The live view image would be trembled and dim when the camera is shocked slightly in some
monitoring conditions. And the electronic image stabilization (EIS) function is used to overcome
this problem to ensure a steady and clear image.
Video Adjustment
Mirror
If you turn the MIRROR function on, the image will be flipped. It is like the image in the mirror. The
flip direction can be set to OFF, or CENTER.
Video Standard
You can set the Video Standard to 50 Hz (PAL) or 60 Hz (NTSC) according to the video system in
your country.
Capture Mode:
The Capture Mode can be selected from the list.
Other
Lens Initialization
The lens operates the movements for initialization when you check the Lens Initialization
checkbox.
Zoom Limit
You can set Zoom Limit value to limit the maximum value of zooming. The value can be selected
from the list.
Note:
Lens Initialization and Zoom Limit functions are supported by Camera 1 only.
Exposure Synchronization
Select ON from the dropdown list to enable exposure synchronization function for Camera 2 or
Camera 3.
3.3.2 Configuring OSD Settings
Purpose:
The camera supports following on screen displays:
Zoom: Identifies the amount of magnification.
Direction: Displays panning and tilting direction, with the format of PXXX TXXX. The XXX following
P indicates the degrees in pan direction, while the XXX following T indicates the degrees in tilt
position.
Time: Supports for time display.
