User Manual of PanoVu Series Network Camera
73

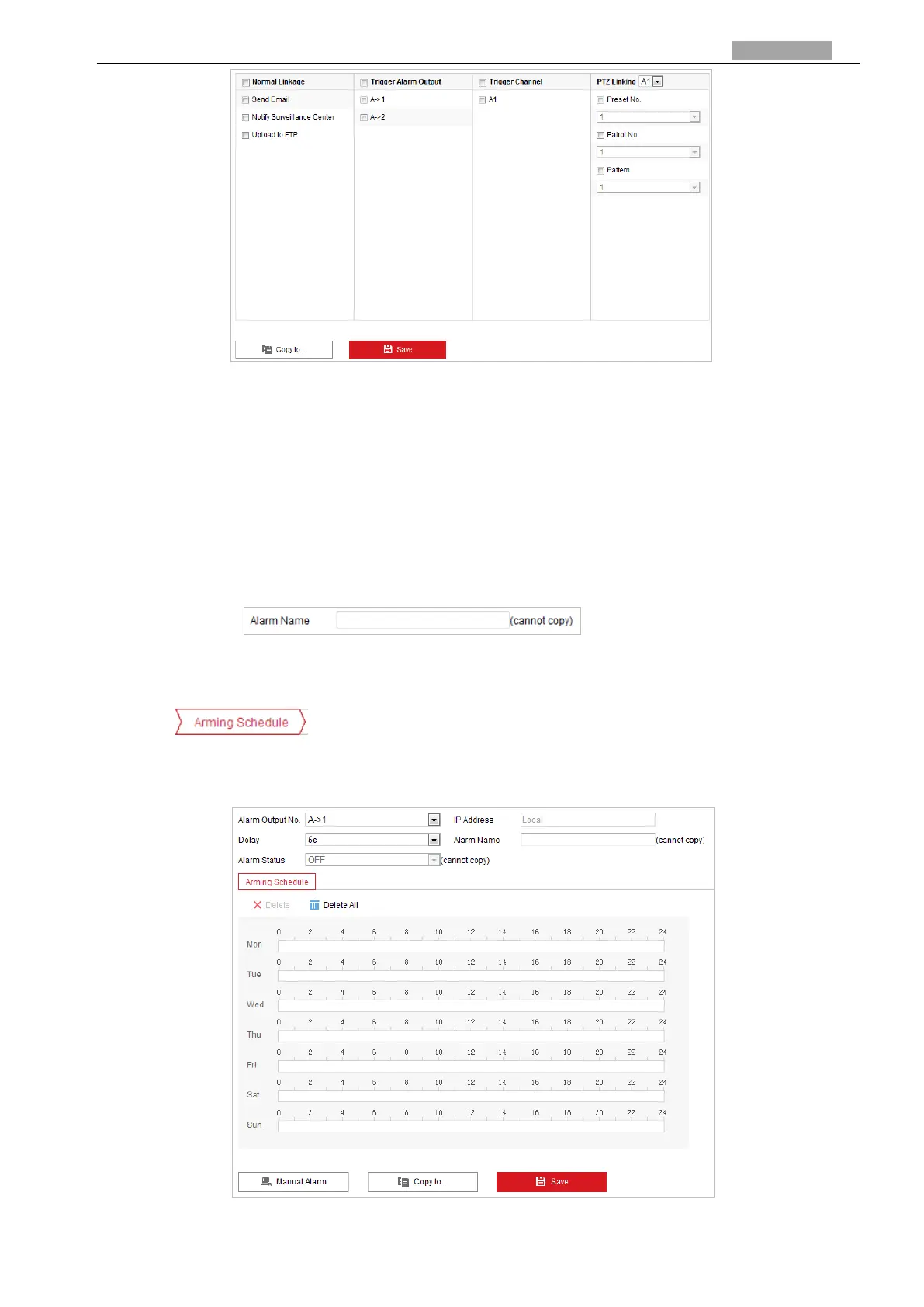

Figure 6-10 Linkage Method
6.1.5 Configuring Alarm Output
Steps:
1. Enter the Alarm Output settings interface:
Configuration> Event > Basic Event > Alarm Output
2. Select one alarm output channel in the Alarm Output dropdown list.
3. Set a name in for the alarm output (optional).
4. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The delay
time refers to the time duration that the alarm output remains in effect after alarm occurs.
5. Click tab to enter the arming schedule setting interface. The time schedule
configuration is the same as the settings of the arming schedule for motion detection. Refer to
Step 5 in Section 6.1.1 Configuring Motion Detection.
Figure 6-11 Alarm Output Settings
