User Manual of PanoVu Series Network Camera
2) Draw the Detection Area: Click on the tool bar of the live view panel. Click the
mouse to draw an area on the live view panel. Right click the mouse to finish. Click Save to
save the settings.
3) Draw the Minimum Pupil Distance: Click on the tool bar of the live view panel. Drag
the mouse to draw a pupil distance on the live view panel. The system will filter the
objects with a pupil distance which is less than the configured value.
4) Click to save the settings.
6.3.9 Rule Configuration Demonstration
This section provides detailed configuration steps for each rule.
Line Crossing
Purpose:
This function can be used for detecting people, vehicles and objects traversing a set virtual plane.
The traversing direction can be set as bidirectional, from left to right or from right to left. The
alarm will be triggered if the rule is broken.
Steps:
1. Create new rule: Click add a new rule.
2. Select rule type: Click the dropdown list and select Line Crossing as the rule type.

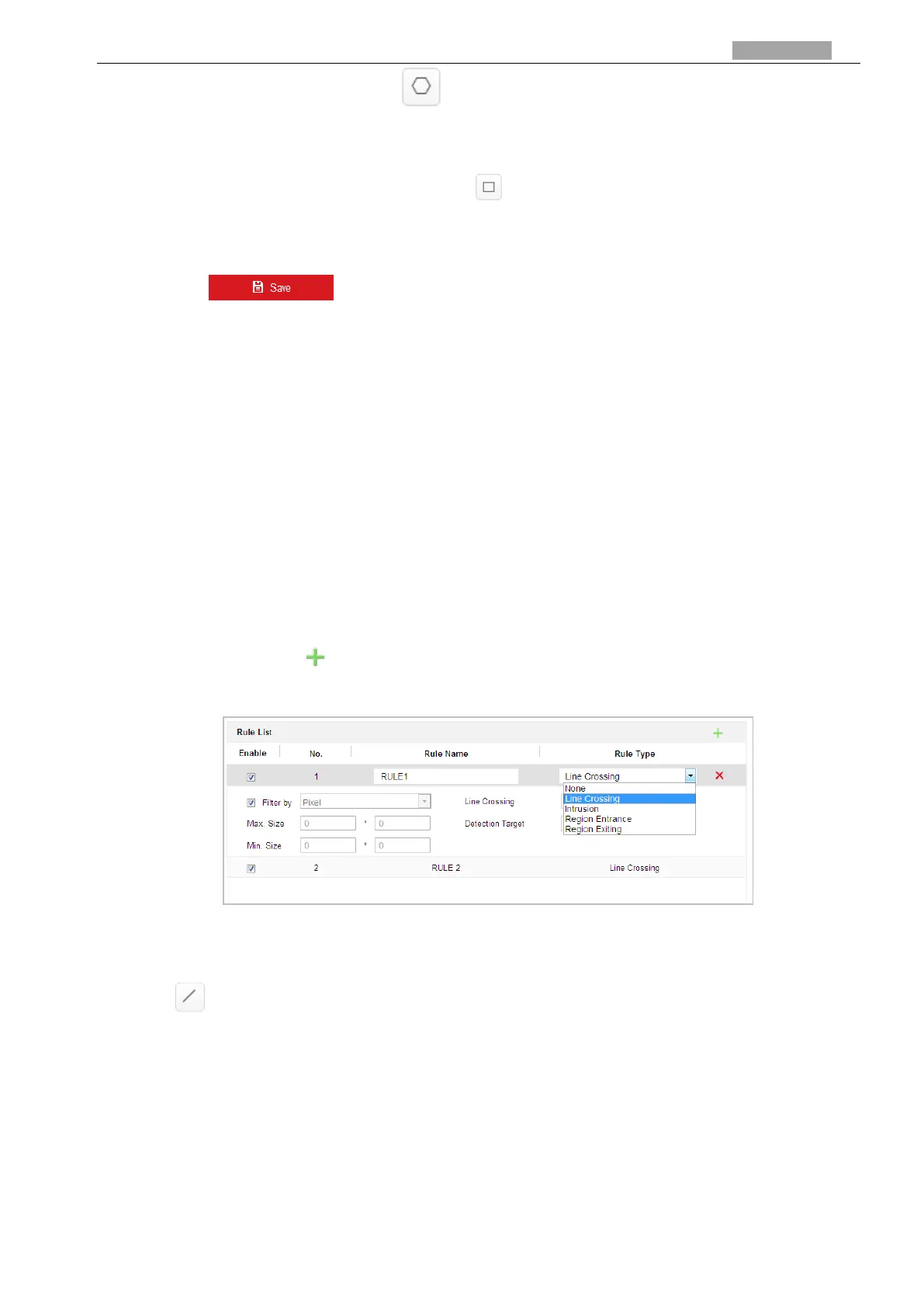

Figure 6-31 Select Rule Type
3. Configure the rule area:
Click on the tool bar of the live view panel. Adjust the position and length of the line on
the live view panel.
