HIKVISION DS-7108NI User Manual

User Manual of WIFI Network Video Recorder
19

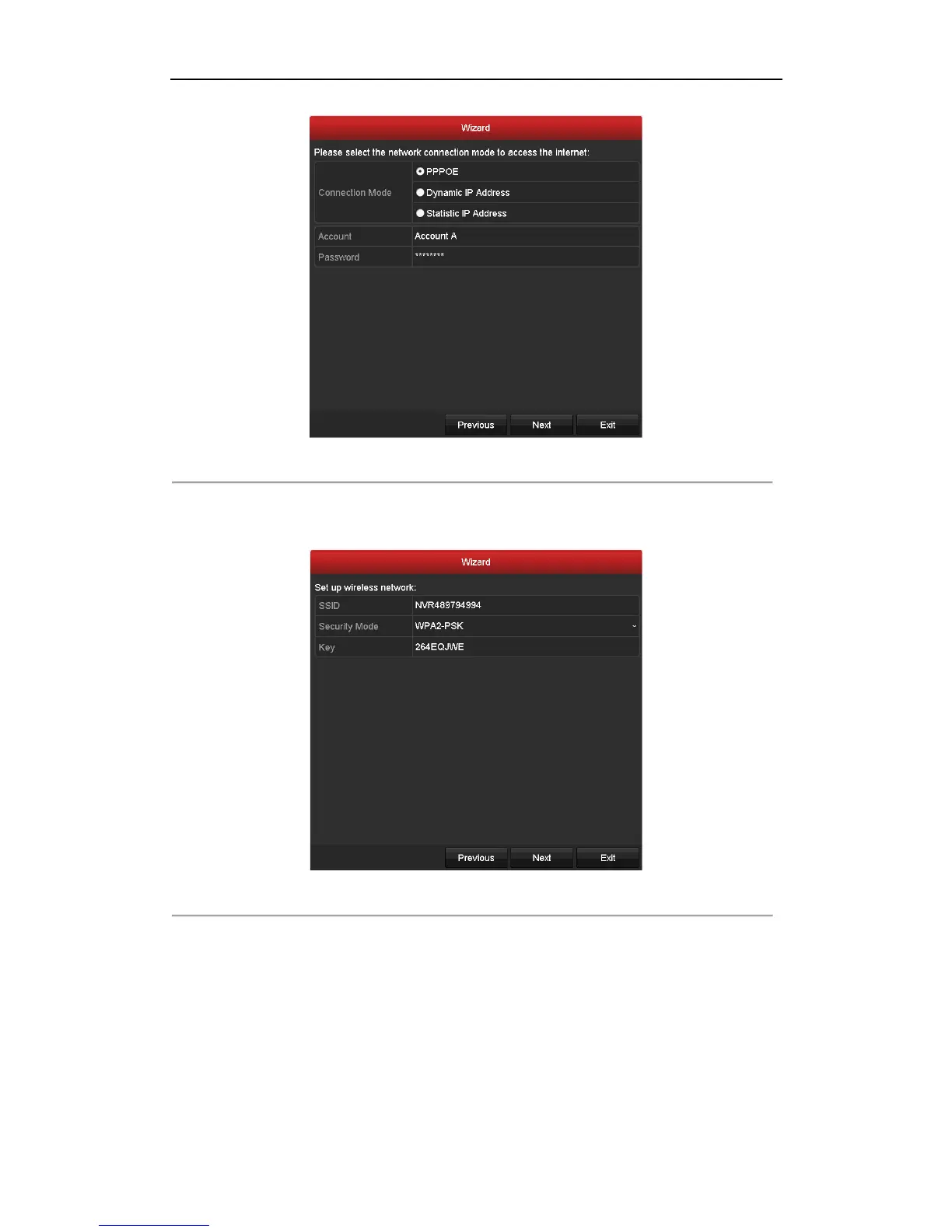

Figure 2. 7 WAN Settings
4. Select the Connection Mode as PPPoE and input Account and Password.
5. Click Next button to enter WIFI settings interface.
Figure 2. 8 WIFI Settings
6. Edit SSID and select Security Type. Input Network Security Key if Security Type does not set as Disable.
7. Click Next button which takes you to the General Network Configuration window.

HIKVISION DS-7108NI Specifications

General

Model	DS-7108NI
Channels	8
HDD Bays	1
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
SATA	1 SATA interface
Operating Humidity	10% to 90%
Type	Network Video Recorder
Max HDD Capacity	6TB
Video Output	1 × VGA, 1 × HDMI
HDMI Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Decoding Format	H.264
Resolution	8MP
Capability	8-ch @1080p
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
