HIKVISION DS-7108NI User Manual

User Manual of WIFI Network Video Recorder
20

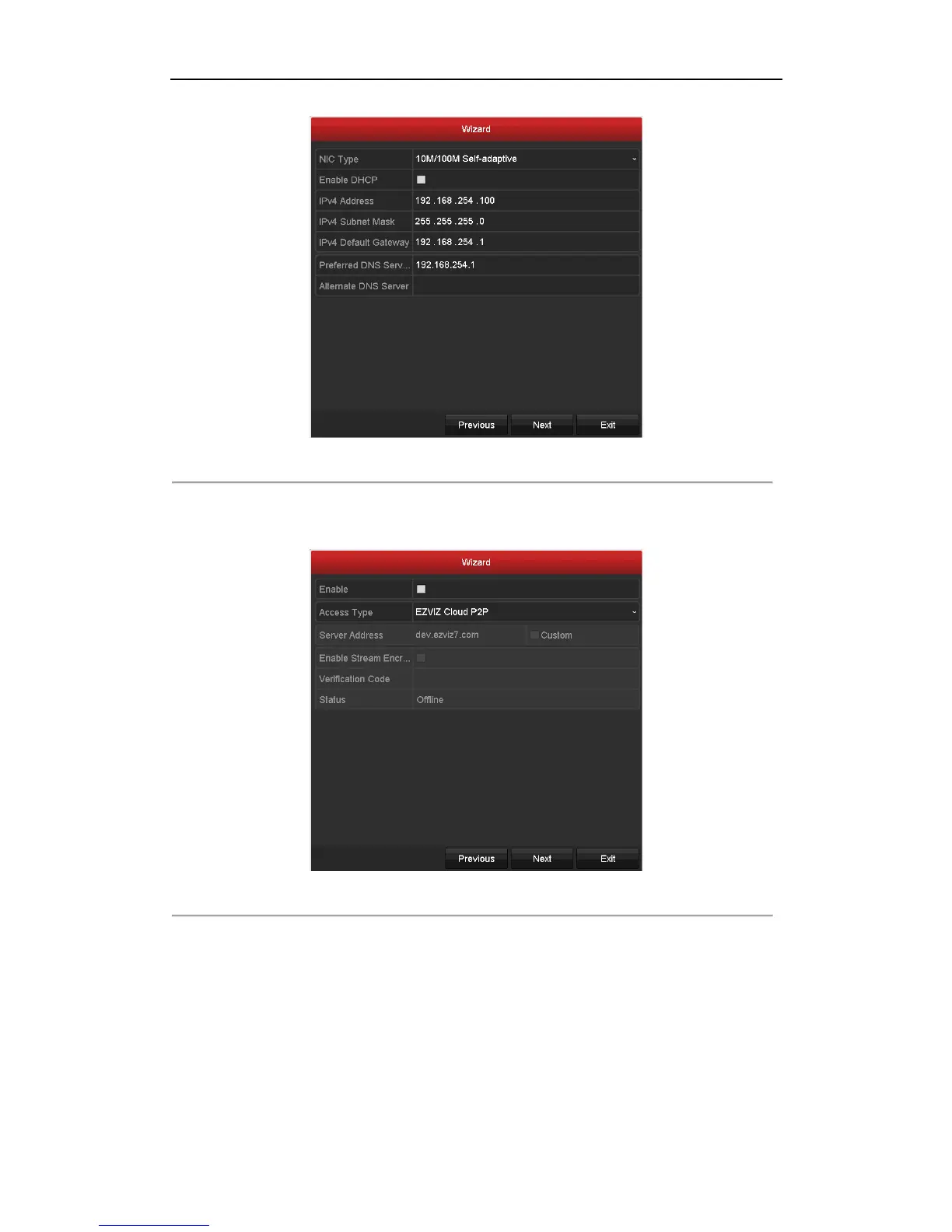

Figure 2. 9 General Network Configuration
8. Click Next button after you configured the general network parameters. Then you will enter the EZVIZ
Cloud P2P interface. Configure the EZVIZ Cloud P2P according to your needs.
Figure 2. 10 EZVIZ Cloud P2P interface
9. Click Next button to enter the Advanced Network Parameter interface. You can enable UPnP, enable
DDNS and set other ports according to your need.

HIKVISION DS-7108NI Specifications

General

Model	DS-7108NI
Channels	8
HDD Bays	1
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
SATA	1 SATA interface
Operating Humidity	10% to 90%
Type	Network Video Recorder
Max HDD Capacity	6TB
Video Output	1 × VGA, 1 × HDMI
HDMI Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Decoding Format	H.264
Resolution	8MP
Capability	8-ch @1080p
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet interface
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
