Video Access Control Terminal User Manual
10
5.2 The Wiring of External Card Reader

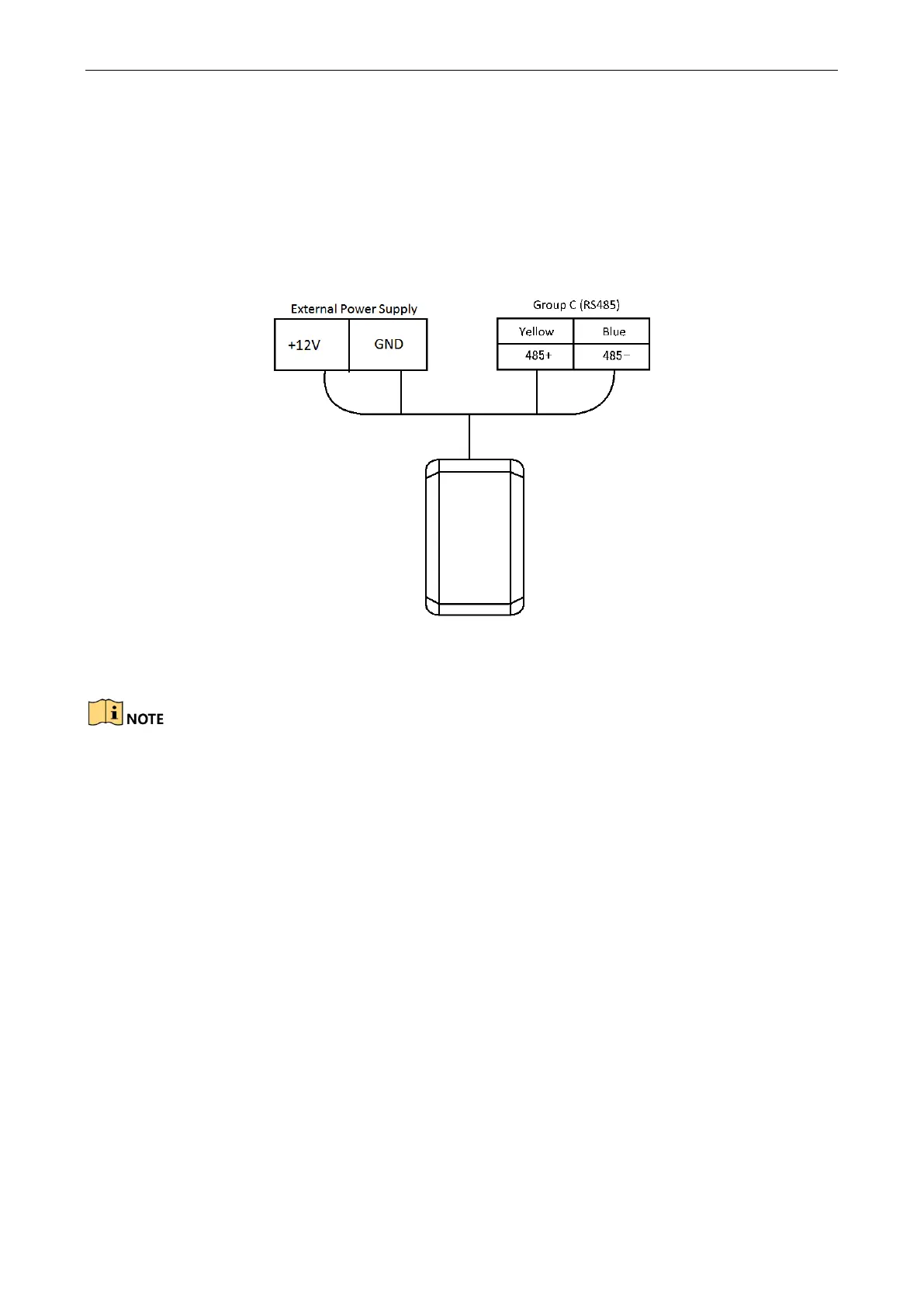

5.2.1 The Wiring of External RS-485 Card Reader
If set the working mode as the controller mode, the DIP switch No.6 should be set as OFF.
If set the working mode as card reader mode, the DIP switch No. from 1 to 4 should be set as OFF. The terminal
can connect to the RS-485 card reader.
5.3 Card Reader Connection
The access control terminal can be switched into the card reader mode. It can access to the access control as a
card reader, and supports Wiegand communication port and RS-485 communication port.
When the access control terminal works as a card reader, it only supports being connected to the controller, but
does not support alarm input or output, or the connection of external devices.
