Mobile Video Recorder User Manual
9
3.2.3 Configure Event Triggered Recording
Trigger recording when an event is triggered.
Before You Start
● Install and format the storage media.
● Configure event parameters. Refer to "Events and Alarms" for details.
Steps
1. Go to Configuration → Storage → Schedule Settings.

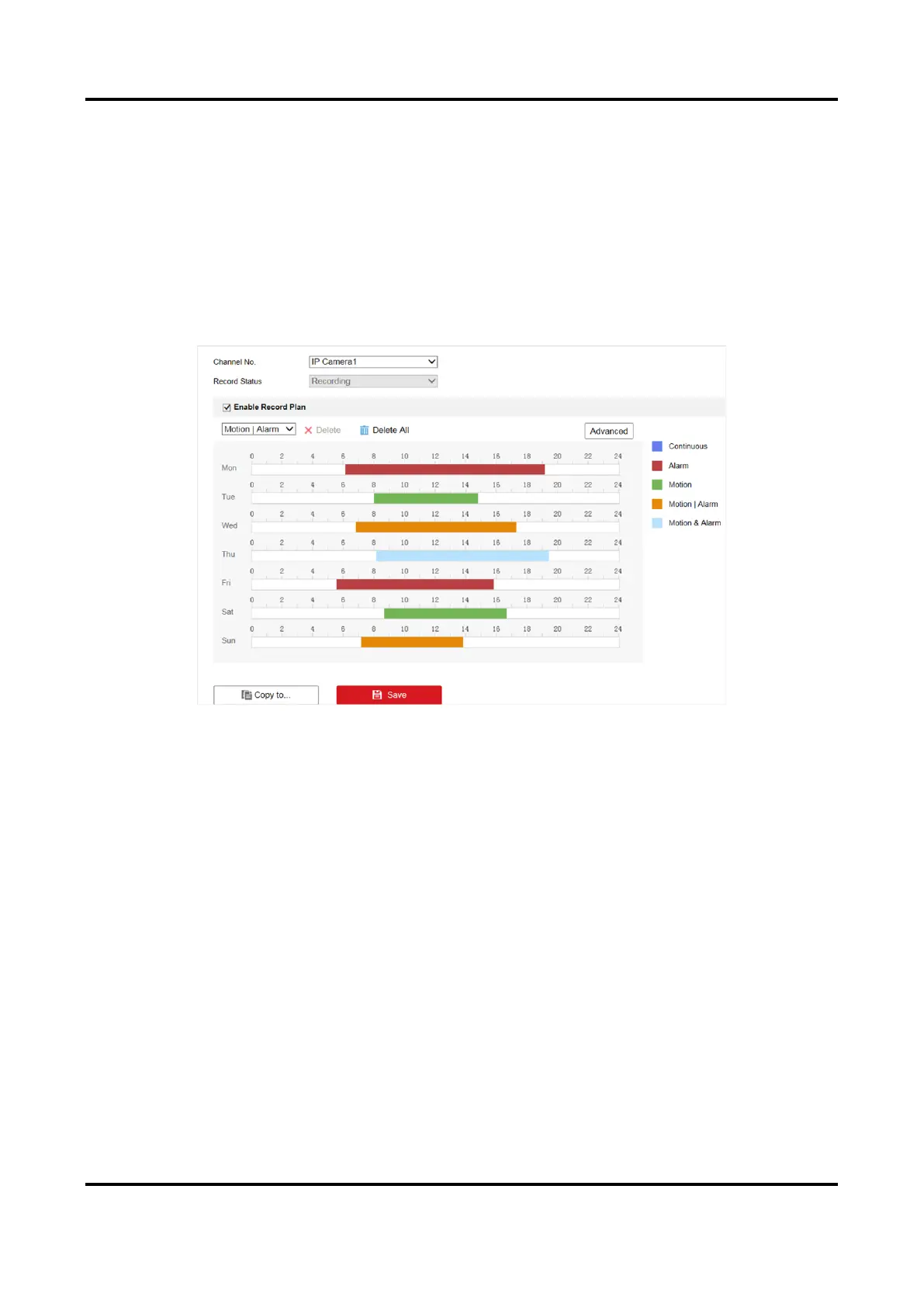

Figure 3-3 Configure Event Triggered Recording
2. Select Channel No.
3. Check Enable Record Plan.
4. Select recording type as Alarm, Motion, Motion | Alarm, or Motion & Alarm.
Motion | Alarm
Trigger recording when either motion detection or alarm input is detected.
Alarm
Trigger recording when alarm input is detected.
Motion
Trigger recording when motion detection is detected.
Motion & Alarm
Trigger recording when both motion detection and alarm input are detected.
5. Optional: Click Advanced to configure pre-record, post-record, and expired time.
Pre-record
The time you set to start recording before the scheduled time or the event. For example, if an
