Mobile Video Recorder User Manual
18
3. Enter server information.
4. Click Save.
What to do next
Open the web browser and enter the server address to visit it.
4.2 Platform Connection
4.2.1 Connect to EHome Platform
EHome is a platform access protocol. The device can be remotely accessed via EHome platform.
Before You Start
● Create the device ID on EHome platform.
● Ensure the device can communicate with the platform normally.
Steps
1. Go to Configuration → Network → Advanced Settings → Platform Access.
2. Check Enable.
3. Select Platform Access Mode as Ehome Platform.

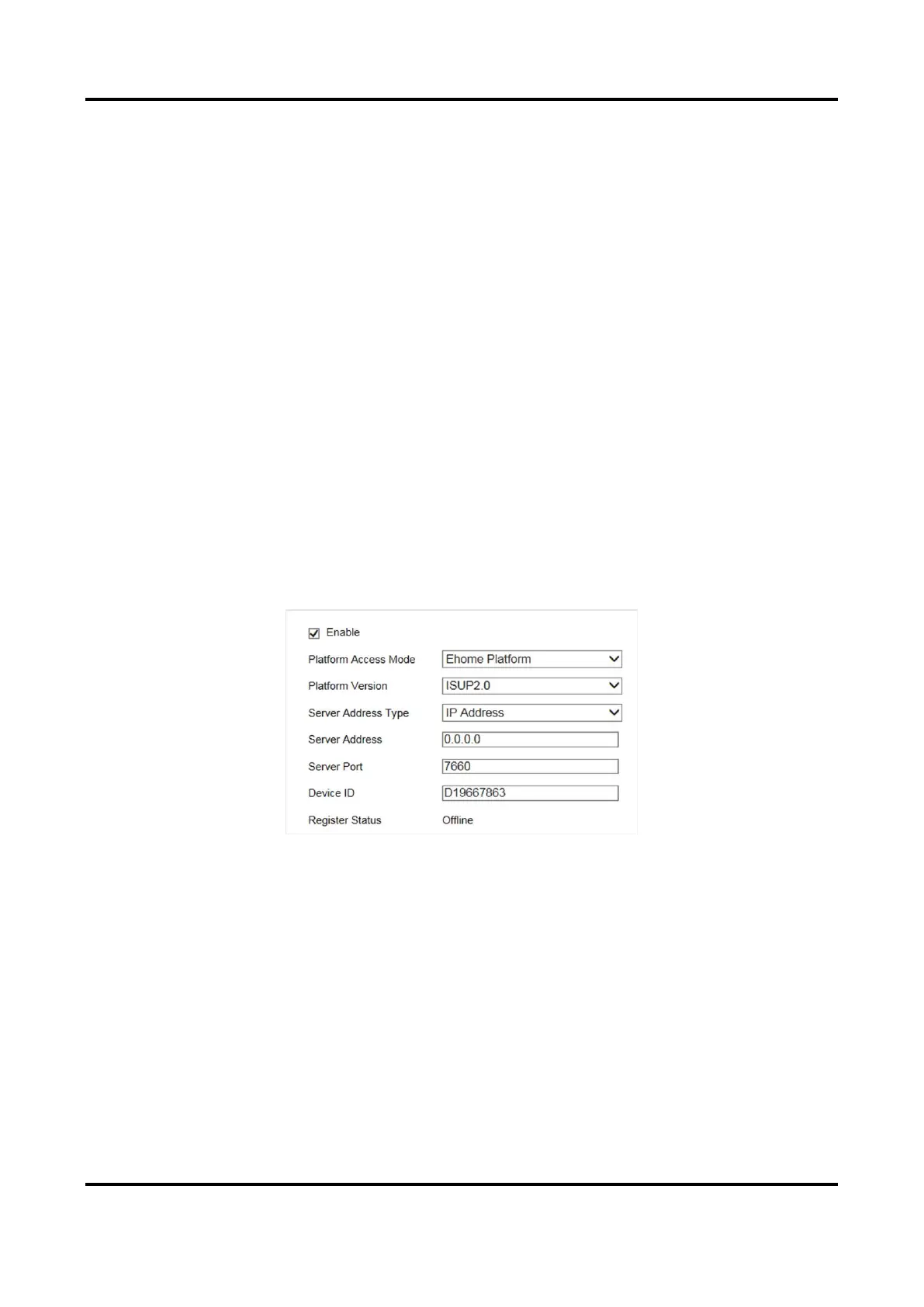

Figure 4-4 Configure EHome Platform
4. Select Server Address Type.
– When the server is in extranet, and the IP address is dynamic, you can select Domain Name.
– When the server IP address is static, you can select IP Address.
5. Enter Server Address, Server Port, and Device ID.
Server Address
Enter the static IP address of EHome platform.
Server Port
The default value is 7660.
Device ID
