7.2 Orthopedic Half Frame
Chapter 7: Accessories
Page 7 - 4 Electrically Operated General Ward Bed
Operation and Maintenance Manual (154588 REV 1)
7.2 Orthopedic Half Frame
Tools required: None
The Orthopedic half frame is a removable, adjustable device that installs into
the corners of the bed.
Installation
1. Install the uprights (A) into the corner sockets of the bed (see figure 7-2 on
page 7-4).
2. Install the cross bar (B). Position the cross bar as required.
Allow the item to float until the assembly is completed.
3. Install the pulley supports (C). Position the supports as required.
4. Tighten all clamps securely.

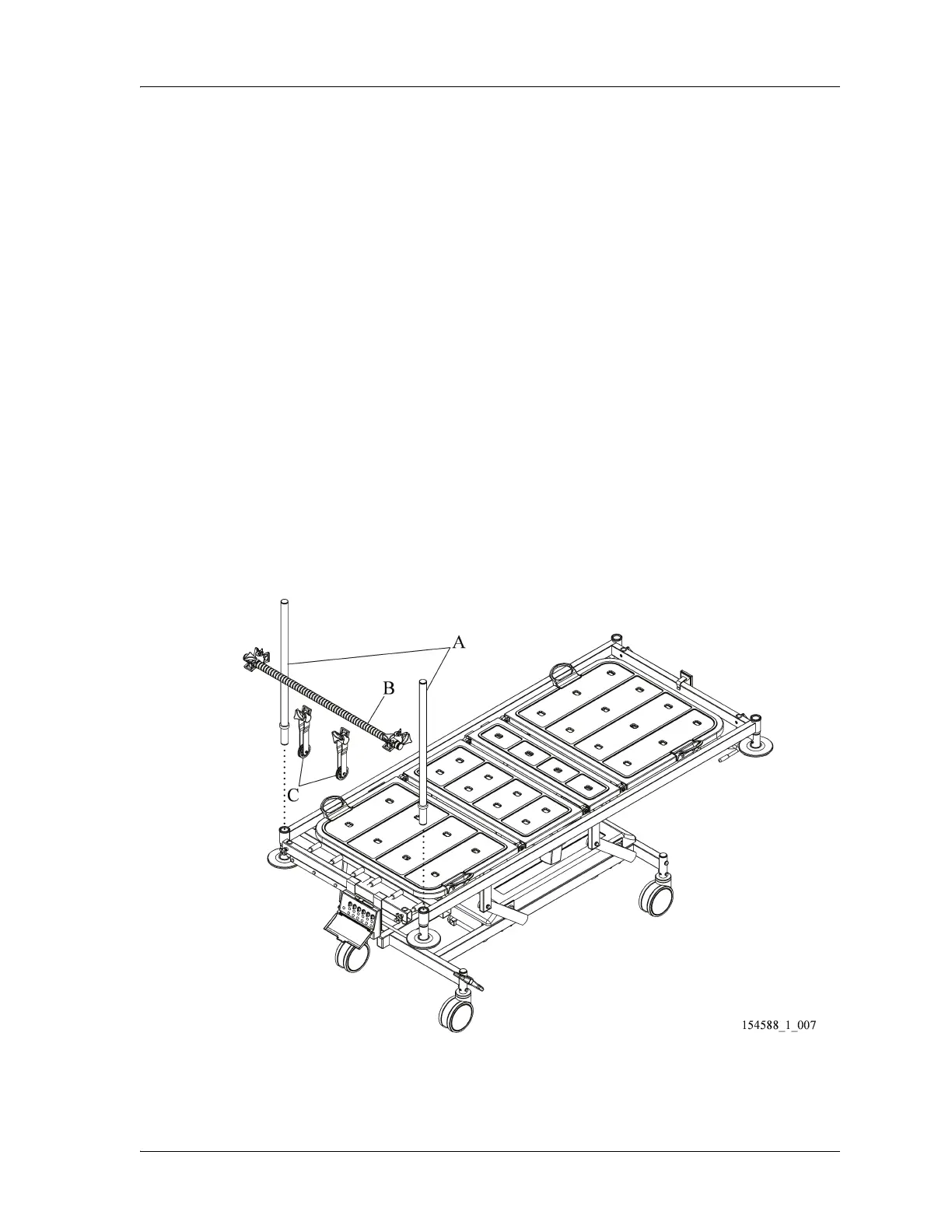

Figure 7-2. Orthopedic Half Frame
Removal
Do the installation procedure in reverse order.
