Accessories
Compella™ Bariatric Bed System Instructions for Use (178951 REV 6) 73
To Install
1. Remove the cover from the Patient Helper mount on the bed. Keep the cover.
2. Turn the arm assembly so that it is towards the left or right side of the bed, and
install the arm assembly into the Patient Helper mount.
3. Pull the T-handle that is on the Patient Helper mount until the arm assembly
lowers into position.
4. Install the horizontal arm into the arm assembly, and insert the pull pin to hold
the horizontal arm in position.
5. Install the clamp of the trapeze handle assembly on to the horizontal arm, and
tighten the clamp to attach the trapeze handle assembly to the horizontal arm.
6. Turn the arm weldment so the trapeze handle is centered over the bed and the
T-handle locks into position.

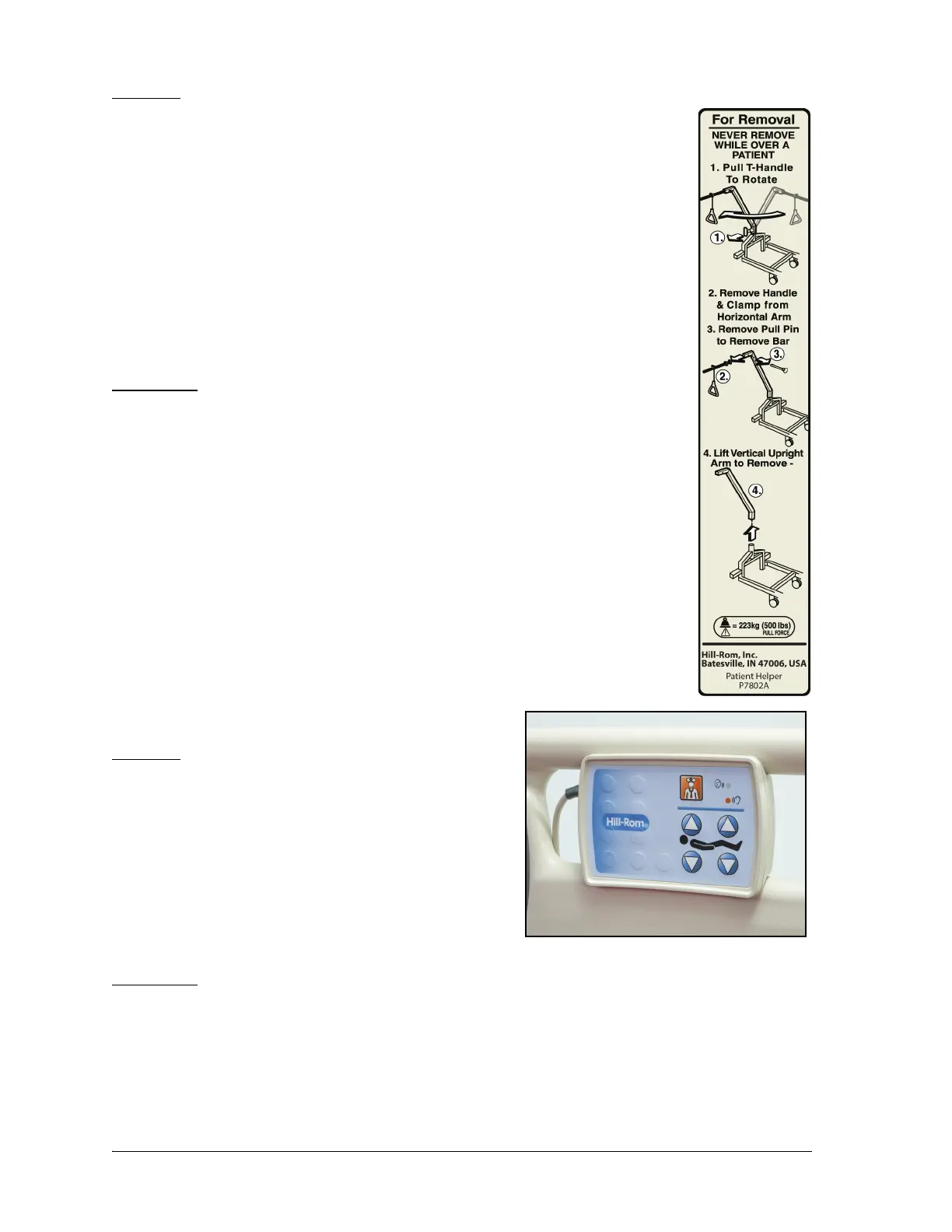

To Remove
1. Pull the T-handle that is on the Patient Helper mount, and turn the arm assembly
so that the trapeze handle is over the side of the bed.
2. Loosen the clamp that attaches the trapeze handle assembly to the horizontal
arm, and remove the trapeze handle assembly from the horizontal arm.
3. Remove the pull pin and horizontal arm from the arm assembly.
4. Remove the arm assembly from the Patient Helper mount.
5. Install the cover on to the Patient Helper mount.
Patient Pendant (P7803A01/02)
To Install
1. Put the pendant into position in the opening from the
patient side of a head-end siderail.
2. Set the top edge of the pendant into the siderail so it
engages the upper section of the siderail.
3. Rotate the lower edge of the pendant inward until it
clicks into position inside the siderail.
When the pendant is not in use, we recommend that you
keep it stored in its slot in the siderail.
To Remove
Gently pull the pendant out from the siderail.
