Surface Features and Controls
Compella™ Bariatric Bed System Instructions for Use (178951 REV 6) 57

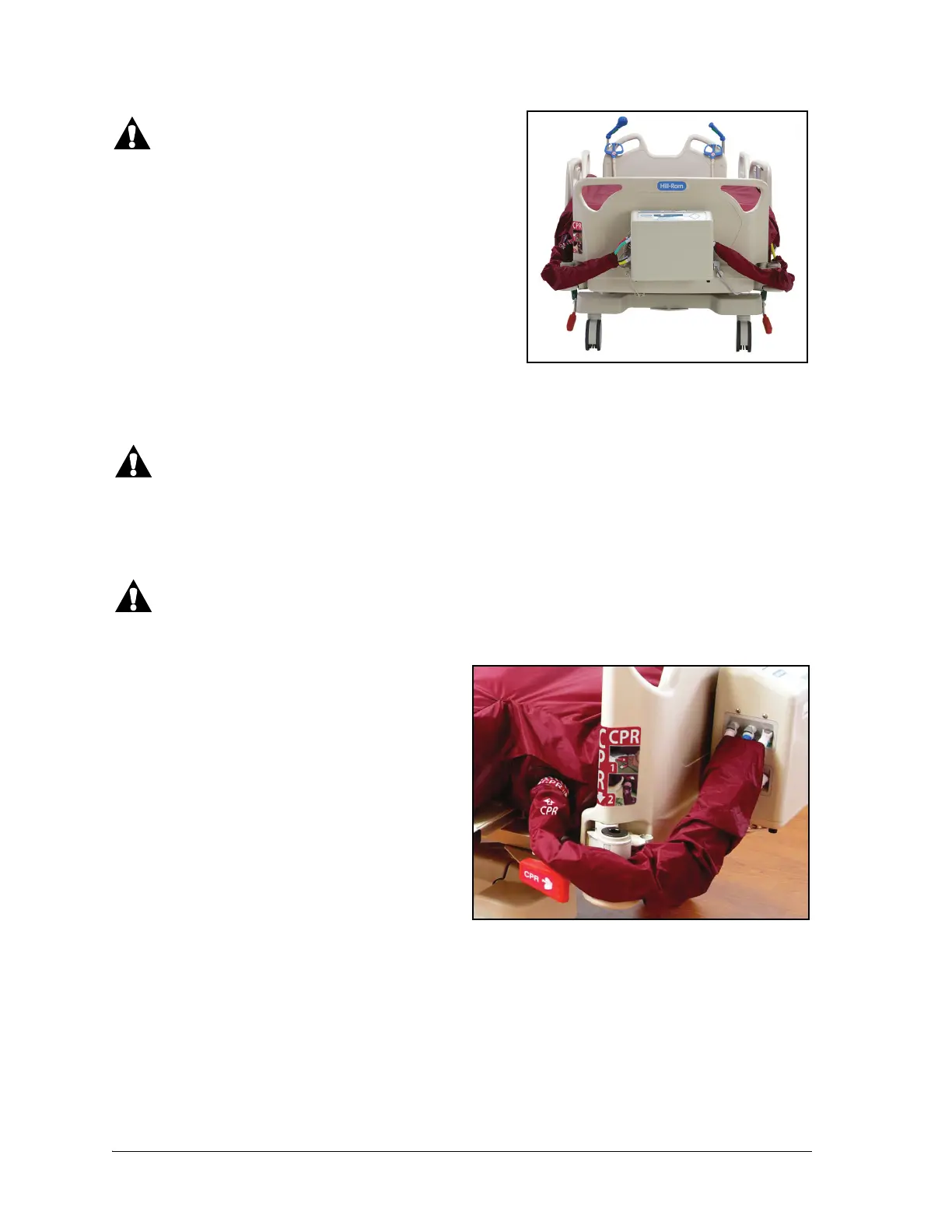

INSTALL THE SURFACE AND AIR SUPPLY UNIT
Warning—Make sure the surface is correctly connected to
the bed frame. Otherwise, patient injury could occur.
1. Raise the head end of the bed to approximately 30°.
2. Turn the surface so that the hoses are at the foot end
of the bed.
3. Use the surface straps on the bottom of the surface to
attach the surface to the mounting slots at the head,
seat, and foot sections of the bed frame. Make sure the
mounting brackets correctly attach the surface straps
to the mounting slots.
4. Raise the siderails, and then gently pull on the siderails
to make sure they are fully latched in position. Make sure there are no gaps between the surface
and the siderails.
Caution—When you hang the air supply unit on the footboard, make sure that the mounting bracket is
installed on the footboard correctly. Otherwise, equipment damage could occur if the air supply unit
becomes dislodged.
5. Hang the air supply unit on the mounting bracket on the footboard.
Caution—Make sure that the surface being connected is correctly matched to the air supply unit to
make sure that all functions operate correctly.
6. For a therapy surface, connect the hoses
from the surface to their respective color-
coded connectors on both sides of the air
supply unit:
•On the patient right-hand side of the air
supply unit, connect the red, blue, green,
white, black, and yellow hoses.
•On the patient left-hand side of the air
supply unit, connect the white, black,
and yellow hoses.
The yellow hose on the left-hand side is the low
airloss hose from the top cover of the surface.
7. For a foam surface, connect the white, black, and red hoses from the surface to the color-coded
connectors on the patient right-hand side of the air supply unit.
