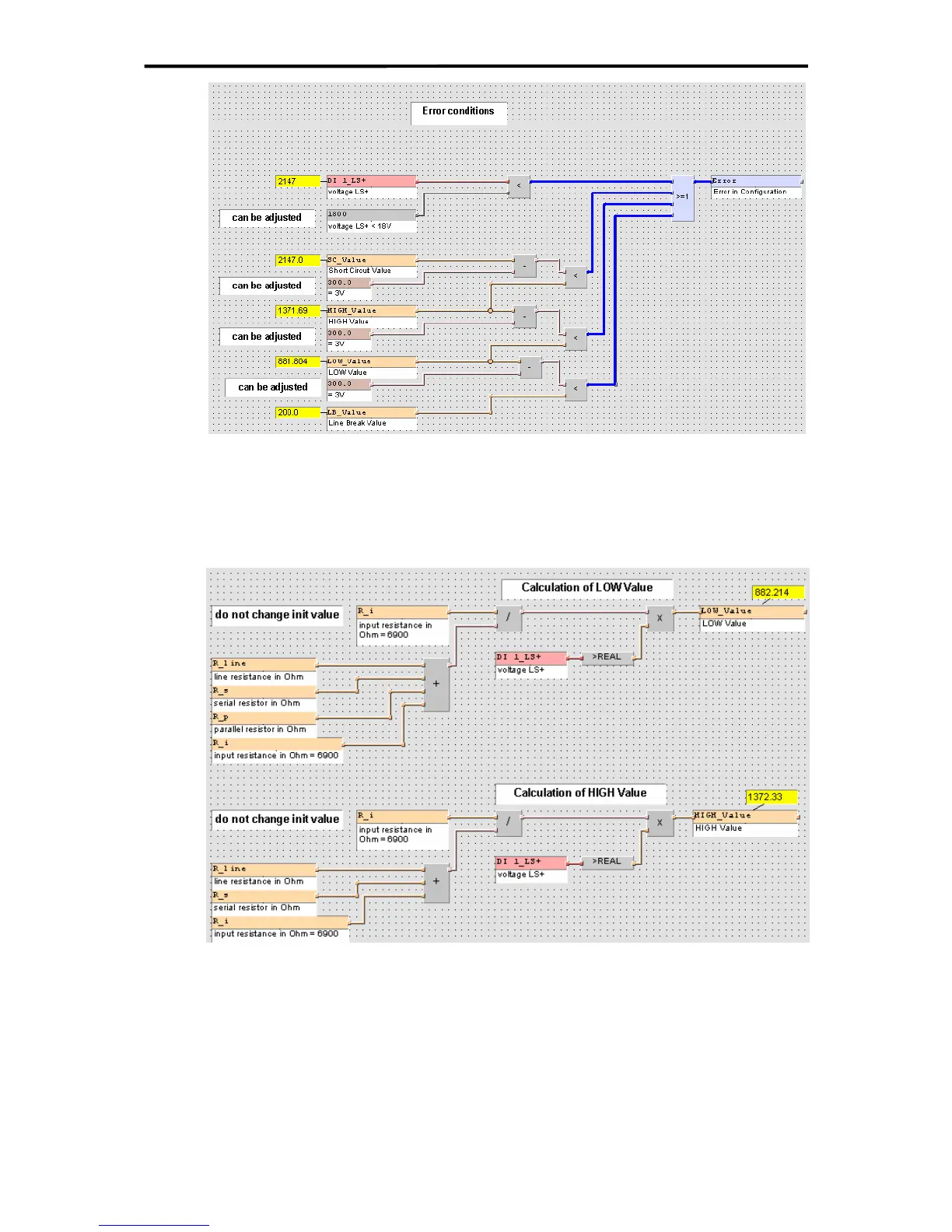

Figure 28: Function block – error conditions
In this example an error is generated when the voltage of the LS+ is below 18 V and when
the gaps between short-circuit, closed contact, open contact and line break are lower than
300 digits (3V).
Figure 29: Function block – values for line break, short-circuit, open and closed contact
49 of 61
