1.7 Management interfaces
1.7.1 Signal contact

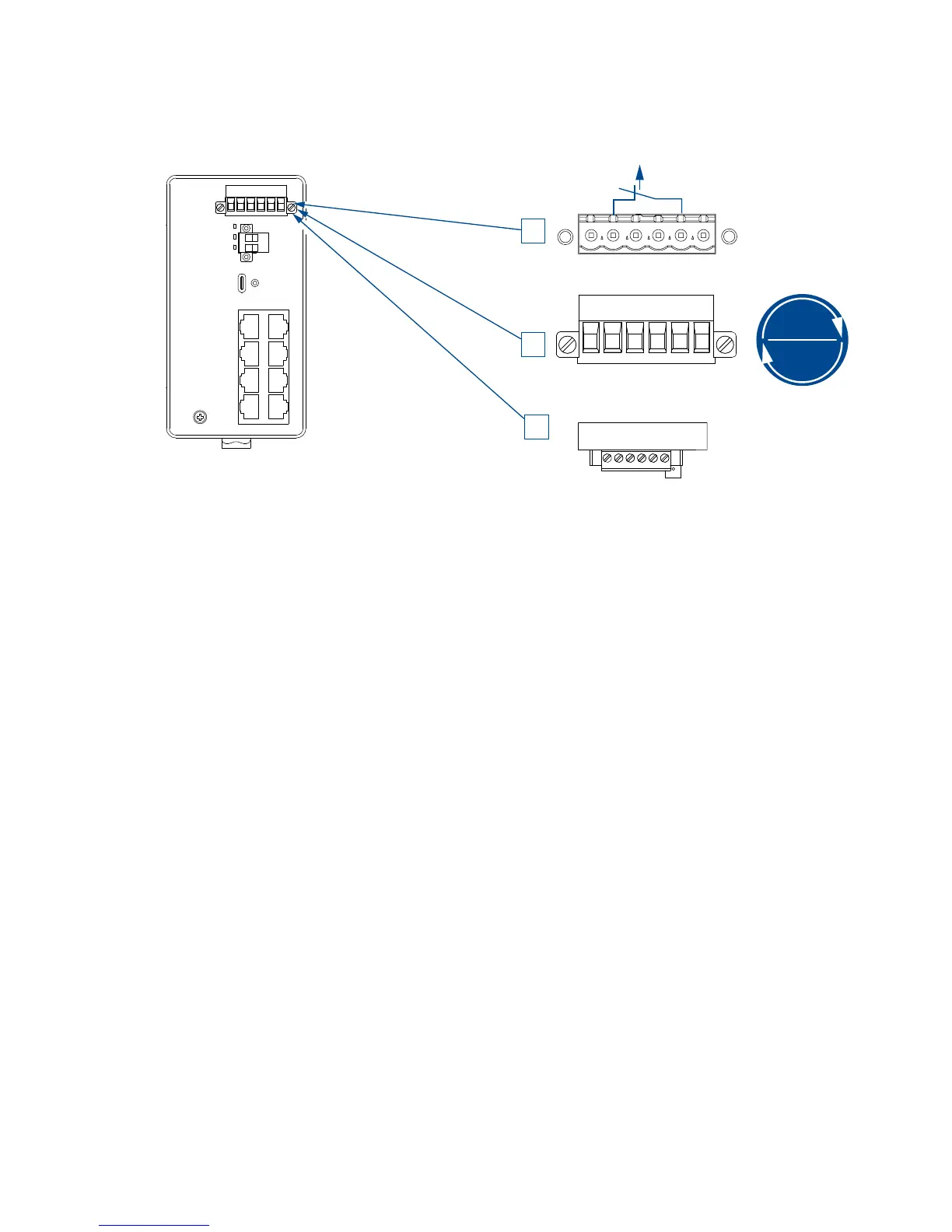

Figure 6: (1) Connection on the device, (2) terminal block mounted on the device
(front view), tightening torque, (3) terminal block mounted on the device
(view from above).
The signal contact is a potential-free relay contact. The signal contact is open
when the device is not connected to a power supply.
The signal contact allows you to control external devices or monitor device
functions.
In the configuration, you specify how the device uses the signal contact.
You find detailed information regarding possible applications and
configuration of the signal contact in the software user documentation on the
Hirschmann product pages (www.hirschmann.com).
